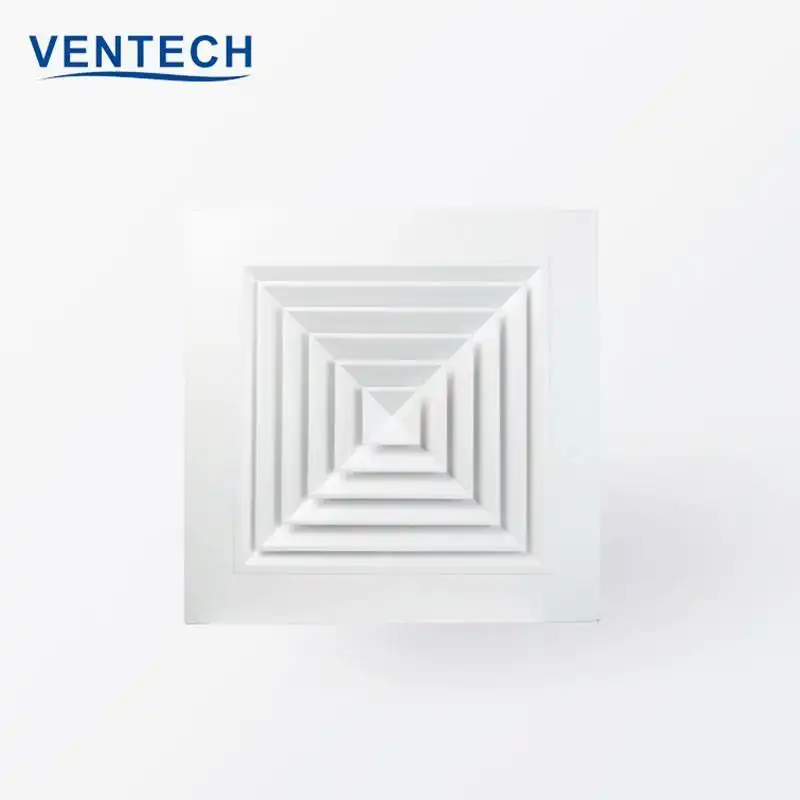

Ceiling Replacement 4 Way Supply Ceiling Air Diffuser

V E N T E C H

PRODUCT FEATURES

High capacity, Square ceiling directional diffusers blend harmoniously with architectural details and are available with a wide array of frame styles for easy integration with modular ceiling systems.

1.Supply or return air applications.
2.Extruded Welding Diffuser . This Model can be made into standard sizes only. Face size 595x595mm, 600x600mm, 597x597mm are optionals.
3.Rigid, heavy gauge extruded frames with reinforce.
4.Special patterns are available.
5.Powder coating finish, standard color white.

The Square Ceiling diffuser features large square and rectangular inlets for reduced inlet velocity, resulting in low sound and pressure drop even at high airflows.

The Square Ceiling diffuser is highly configurable with multiple core styles, airflow patterns, and optional features to tailor this product to specific applications.

The Square Ceiling diffuser is well suited to applications that require large volumes of airflow at low sound and pressure drop. Concentrated airflow is discharged from each active side of the diffuser, resulting in longer throws that are ideal for high ceiling applications.

PRODUCT PARAMETERS

Other Popular Model: square ceiling diffuser

The diffuser has fixed straight fins.

In order to provide air, they are particularly suitable for horizontal air injection.

These diffusers are recommended for ceiling heights up to 4 meters and air supply temperature differences of (+ / -) 100 ℃.

The diffuser is composed of a central frame and a heat sink block.

The blade block is fixed on the frame by spring pin, which is easy to remove / install.

There are one, two, three and four direction emission types.

All aluminum extrusion structures comply with DIN 1748 standard.

1 to 4 direction transmission mode.

The easily removable inner part is locked in place without the use of tools.

There are square and rectangular round collars.

Standard surface treatment: electrostatic anodic oxidation coating.
