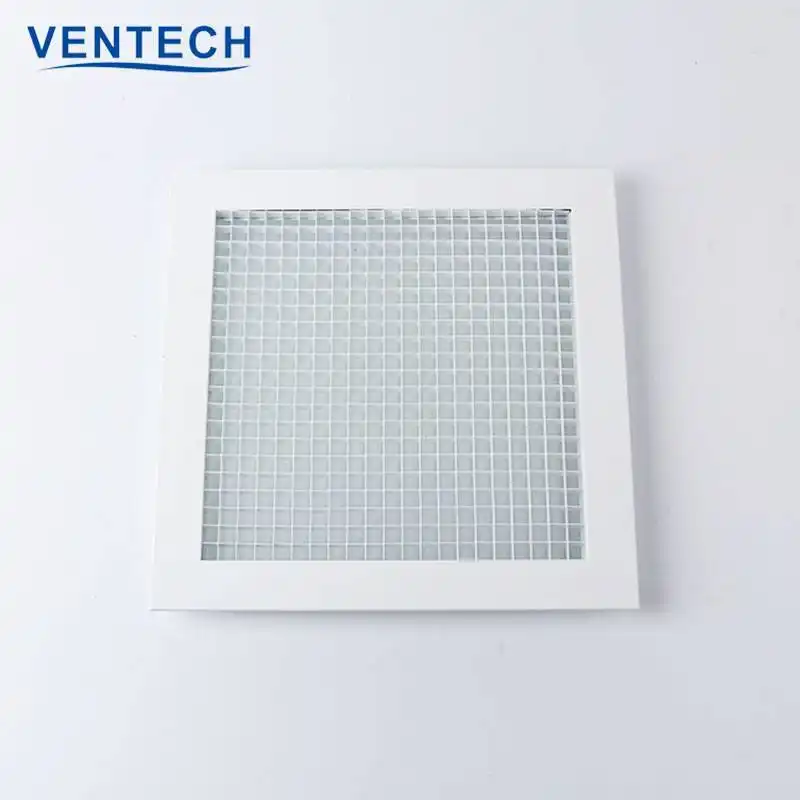

Eggcrate Grille1

V E N T E C H

PRODUCT FEATURES

Comprising a core with a free area of over 90%, egg crate grilles are designed to handle large air volumes without generating excessive noise or impeding ventilation system function with excessive pressure drops. This is ideal for areas requiring high air changeover rates like restaurant kitchens, painting booths etc.

1. For exhaust air.
2. eggcrate core in size 12.7×12.7×12.7mm.
3. For installation in ceilings.
4. Made of extruded aluminum, powder coated.
5. Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.
6. Hinged type eggcrate grille available with a G4 filter.
7. Filter washable and changeable.

structure
1. The box is made of high-quality aluminum profile, and the external surface is treated by electrostatic spraying, with diffuser.
2. The structure is compact and the sealing performance is reliable. The air inlet mode includes side air inlet and top air inlet, and the flange port has square and round structures.
3. Sometimes when the clean room is limited by the height of civil engineering or must adopt compact design, the integrated high-efficiency filter air supply outlet can be selected.
4. There are insulation layers and stainless steel materials to choose from.
characteristic
1. The air inlet mode includes side air inlet and top air inlet, and the flange port has square and round structures.
2. It has the advantages of strong versatility, simple construction and less investment;
3. Ensure the jet speed of air flow and prevent the generation of eddy current;
function
1. Clean rooms with various cleaning levels and maintenance structures.
2. Tuyere material: carbon steel, stainless steel, aluminum plate and plastic;
3. It is used for roof air supply of non-uniform clean room,
4. There are various forms of diffuser, which are beautiful, flat and uniform in style;

PRODUCT PARAMETERS

PRODUCT DETAILS
