High quality supply air diffuser supplier

Company Advantages
1. Advanced technology and latest machine & equipment are used to ensure Ventech is manufactured based on the requirements of lean production. Its wipe-clean design makes it suitable for internal use
2. supply air diffuser is produced by professional technicians with quality guaranteed in Yingde Ventech Air Conditioning Co.,Ltd. This product is available in a broad range of models
3. supply air diffuser has a high performance and . It has been certified under CE for safe operation

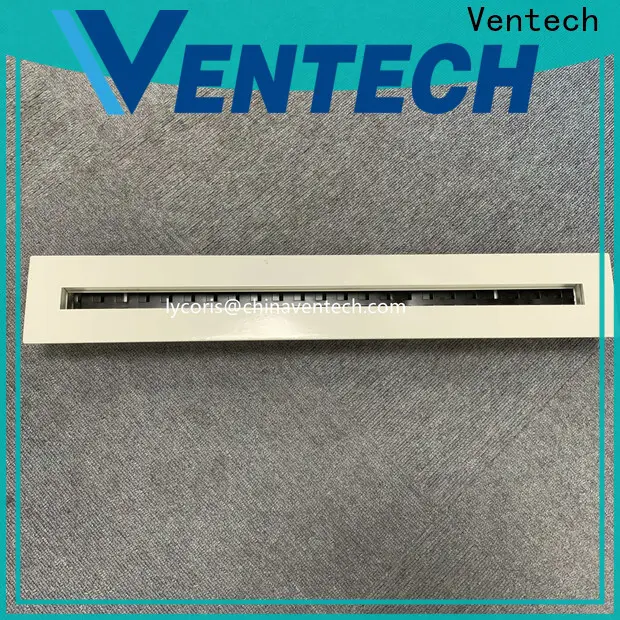

LINEAR SLOT DIFFUSER



VENTECH Linear Slot Diffusers are an attractive alternative to the ceiling or high sidewall supply diffusers. Slot diffusers can be installed individually in set lengths or in a continuous line. They can also be installed in any type of ceiling application.



The modules are available with a 20mm or 25mm Slot with the number of slots ranging from 1 to 6 slots and are further available as fixed or removable core. (Fixed Core - Model LSD-VA, Removable Core – LSD-VB.)



The air pattern control is adjustable from the diffuser face and is achieved by means of an adjustable pattern control with each slot, enabling a full 90º air pattern adjustment. The suggested volume control should be from the main duct run take-off, or from a butterfly damper fitted to the inlet of the cushion head box.

Features:

• ·Concealed screw fixing

  ·Finish: off white standard, other colors on demand

  ·Made from high grade extruded aluminum profiles & sheets.

  ·Accessories: Hit & miss damper, plenum box-top/side entry connection

Details:

• Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
• Material thickness: 1.2mm
• Accessory: Adaptor Optional





Drawing- with Adaptor











Company Features
1. Ventech successfully introduced imported technology in the production of supply air diffuser .
2. Our goal is to fulfill our corporate social responsibility. We will continue to work to ensure that products and services are consistent with the principles of sustainable development. Welcome to visit our factory!
