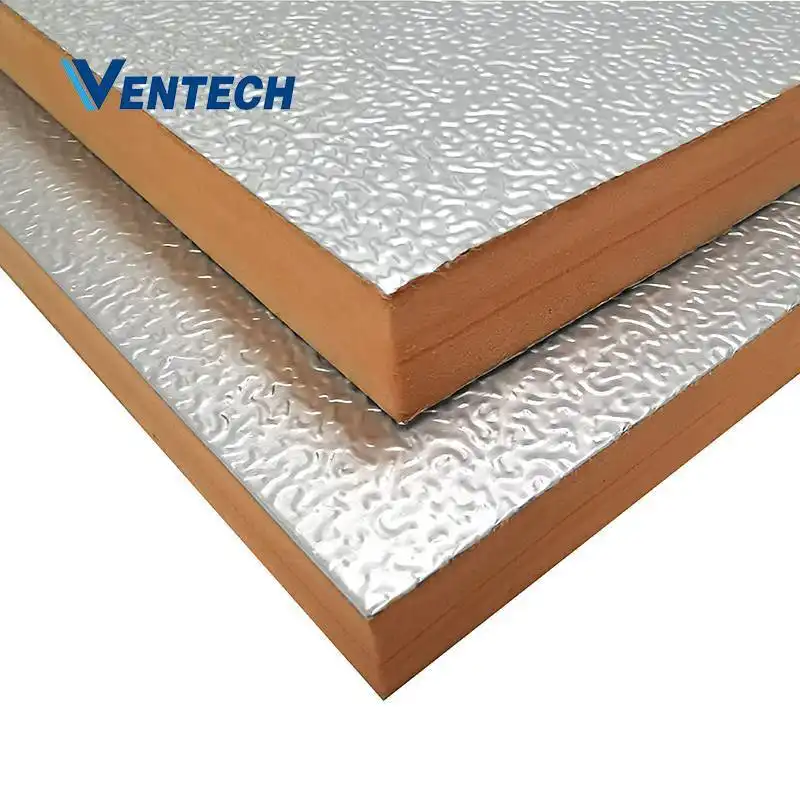

Phenolic foam pre-insulated duct panel 20mm UL 181 for HVAC system

Phenolic duct board

Model No.:

VPP-FGA-20

MOQ:

40HQ

Payment:

30% TT IN ADVANCE,70% BALANCE BEFORE SHIPMENT

Delivery Time:

20 DAYS AFTER RECEIVING PREMENT

Loading Port:

SHENZHEN,CHINA

Logo:

OEM / CHINA

Color:

SLIVER

Model:

VPP-FGA-20

Minimum:

40HQ

Origin:

China

Brand:

OEM / CHINA

Inquiry

Write a Review

Pre insulated duct panel is manufactured from Phenolic Foam Pre-insulated Duct Panels and Accessories by a set of special tools. The Panels consist of panel thickness 20mm, with double-faced fiberglass aluminum foil., both sides faced with aluminum foil, aluminum sheet, etc.

Phenolic Duct Board Specification
Length	3950/3900m
Width	1200m
Thickness	20,25,30mm
Thermal conductivity	0.030W/m.k
Density	55-65kg/m³
Compressive Strength	0.31Mpa
Water Absorption	0.60%
Dimension Stability	0.20%
Operating Temperature Limits	-25°C to 80°C
Application	Indoor
Fire and smoke performance	UL 181
Combustibility Property	Class 0

Phenolic foam pre-insulated duct panel is accomplished by following a standardised procedure. The process is the same regardless of the shape of the duct element: tracing, cutting, gluing, folding, taping, flangeing & reinforcement and sealing.It's best phenolic ductwork for the rooms.

Phenolic foam pre-insulated duct panel 20mm UL 181 for HVAC system 7

Phenolic foam pre-insulated duct panel is widely used in the ventilation systems of central air conditioning units in hotel, supermarket, airport, stadium, workshop, food store, industry and so on.

Product Features:

1、panel thickness 20mm, with double-faced fiberglass aluminum foil.
