    Overview
    Quick Details
    Showroom Location:UAE
    Video outgoing-inspection:Provided
    Machinery Test Report:Provided
    Marketing Type:New Product 2020
    Warranty of core components:1 Year
    Core Components:PLC, Engine
    Brand Name:VENTECH
    Condition:NEW
    Applicable Industries:Building Material Shops, Construction works , MET Project
    Weight:1500 kg
    Place of Origin:Guangdong, China
    Power:10kw
    Dimension(L*W*H):4610 x 2050 x 1360
    Warranty:1 Year
    Sheet Thickness (mm):30mm
    Production Capacity:0-1500mm/s
    Key Selling Points:High-accuracy
    Application:HVAC ductwork fabrication
    Automatic Nesting Sofeware:included
    Working Size:4000mm x 1300mm
    Cutting Ways:Half Blades, full blades, and V blades
    cutting Accuracy:≤ 0.1mm
    Repeat Accuracy:≤ 0.05mm
    Minimum Circle:≥ 0.05mm
    Graphic Format Supported:Format AI software, Autocad, Coraldraw and all box software
    Working Voltage:AC220V 380V±10%, 50Hz
    Cutting Shapes:Elbow, Shoe, Straight Square etc.
    Video Description
    VENTECH phenolic PIR PU sandwich panel pre insulated duct cutting machine
    power supply
    220V,50HZ
    Material
    composite material
    Applicable People
    1
    usage
    for air conditioning
    fuction
    producing air ducts
    package
    polywood
    MOQ
    1
    Quality Certification
    ISO14001
    Product Size
    4.6m*2m*1.4m
    warranty period
    1 year
    Product Description

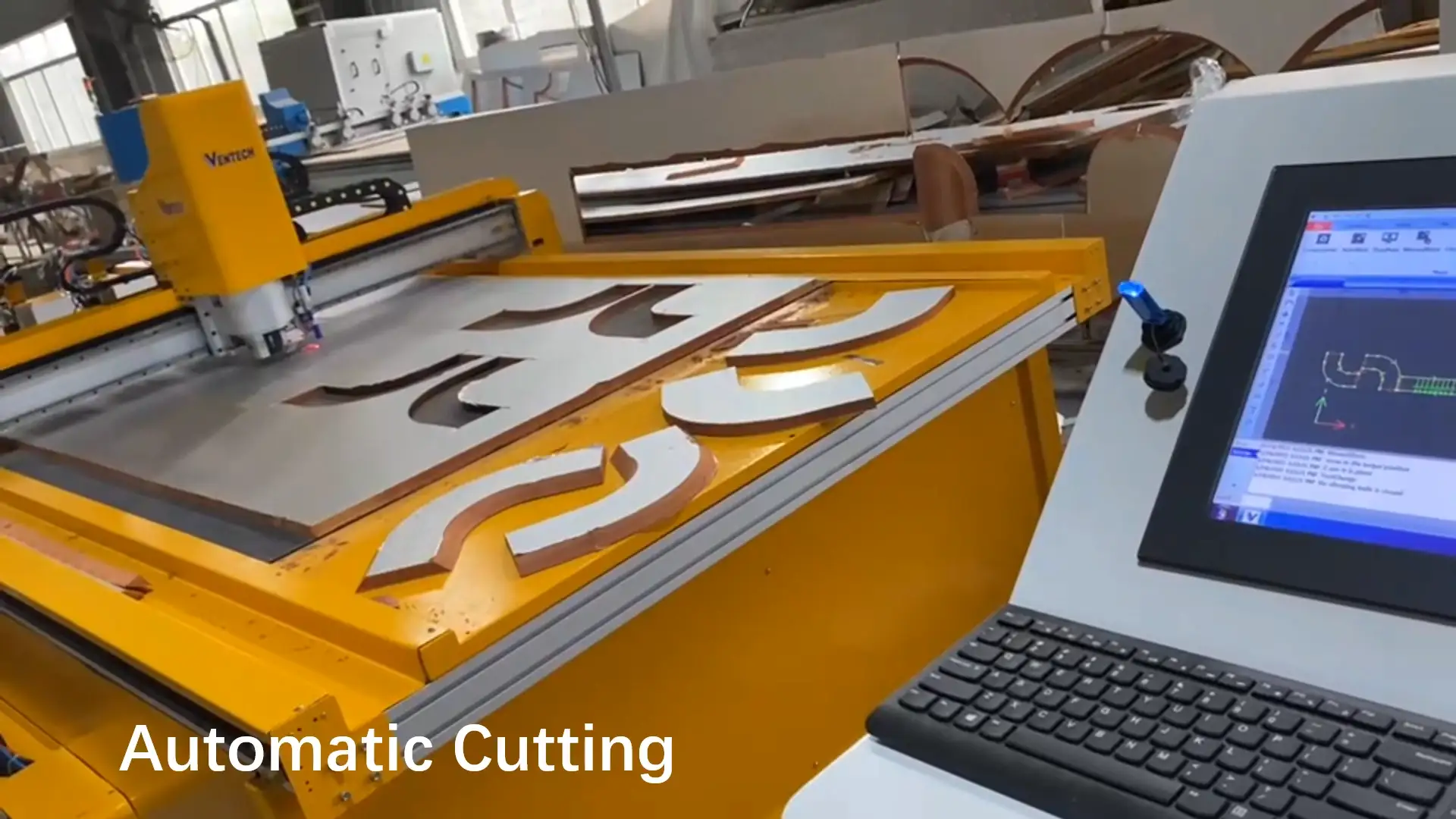

    VENTECH pre-insulated duct fabrication cutter is fully functional machine. · With automatic typesetting software. · 2 in 1 cutting function. One head for shaped cutting and 5 heads for fast straight duct cutting. · High efficiency. Cutting fast, and no need skilled worker.
    Workers do not have to worry that the use of this product will cause any potential dangers. It can reduce human intervention mistakes caused by the malfunction. It is easy to mount without the use of tools. This product is strikingly strong. It is less likely to tear because of bad weather, rough handling, or inadvertent mistakes. It is easy to mount without the use of tools.
