rubber glasswool insulation CNC cutting machine factory
5.0
Lead_Time:
1 - 10(Sets):30(days),>10(Sets):Negotiable(days)
shipping:
Sea freight
Model Number:
VSCM-2516
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:PLC, Motor, Gear
Brand Name:VENTECH
Applicable Industries:Construction works , HVAC
Weight:1350 kg
Place of Origin:China
Dimension(L*W*H):3415x2480x1250mm
Warranty:1 Year, 1 Year
Sheet Thickness (mm):Max.80mm
Key Selling Points:High-accuracy
Brand:VENTECH
Machine Type:Cutting Machine
Cutting Way:Blade Cut
Control System:CNC
Software:Permanent
Cutting Speed:Max. 2500mm/S
Cutting material:Any kind of Soft Material
Cutting Accuracy:≤0.1mm
Spare Part:Blade

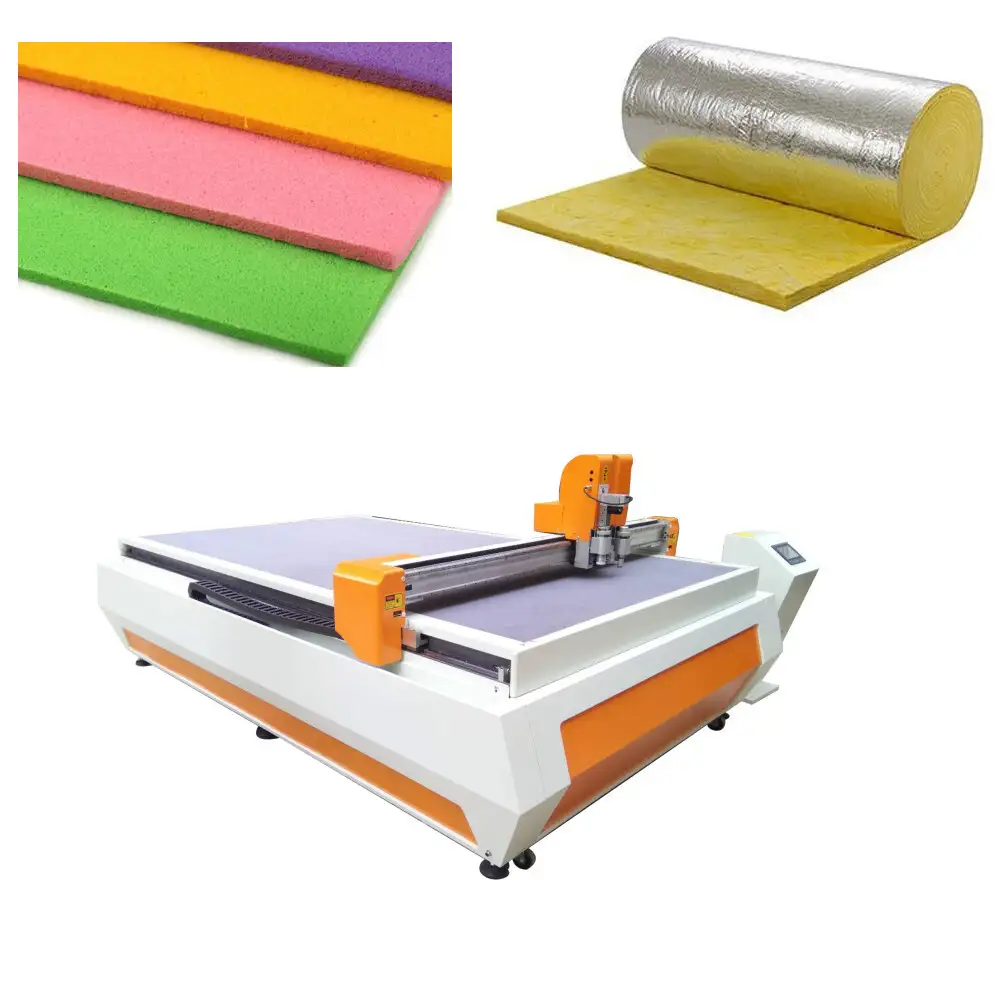

VENTECH Insulation Cutting Machine
Data/ Model | VSCM-2516 | VSCM-1813 |
Working size | 2500*1600mm | 1800*1300mm |
Machine size | 3415*2480*1250mm | 2415*2220*1400mm |
Cutting speed | 80-2,500mm/s | 0-1000mm/s |
Cutting thickness | ≤50mm | ≤40mm |
Cutting accuracy | ≤0.1mm | ≤0.1mm |
Power | 10KW | 7.5KW |
Graphic format supported | AI, Coreldraw, Photoshop, AutoCAD, etc. | AI, Coreldraw, Photoshop, AutoCAD, etc. |
Working voltage | 380V±10%, 50Hz/60Hz | 380V±10%, 50Hz/60Hz |
Package | Wooden case | Wooden case |
Product Description
VENTECH insulation cutter can handle insulation, fiberglass etc.
· Optional fixed table (for sheet material) and automatic feeding table (for roll material).
· Vacuum pump for fixing the material.
· No need skilled worker, but operated at high cutting speed, stability and high precision.
· Optional fixed table (for sheet material) and automatic feeding table (for roll material).
· Vacuum pump for fixing the material.
· No need skilled worker, but operated at high cutting speed, stability and high precision.
Being used to present powerpoints and other electronic slideshows, this product has become a common feature of boardrooms, conference rooms, and classrooms. This product has the advantage of corrosion resistance.
The product is environmental-friendly. People can recycle and reuse it for numerous times, which can reduce the demand for natural fibers or other natural materials. This product has the advantage of corrosion resistance.
