Ventech fan coil unit with good price1 1

Ventech fan coil unit with good price1 2

Ventech fan coil unit with good price1

Model No.:

Horizontal Concealed Fan Coil Units

MOQ:

1pcs

Payment:

T/T,L/C

Delivery Time:

30 days after receiving prepayment

Loading Port:

Shenzhen,China

Logo:

VENTECH/VCARE/OEM

Color:

White

Model:

Horizontal Concealed Fan Coil Units

Minimum:

1pcs

Origin:

China

Brand:

VENTECH/VCARE/OEM

Inquiry

Company Advantages
1. It is true that a fantastic design is a boon to the popularity of fan coil unit . It is widely used in long corridors, offices, buildings, etc
2. Ventech's increasing popularity can not be achieved without the help of . This product is capable of providing excellent air distribution
3. On account of its moisture absorption and sweat releasing property and softness, users will remain cozy and comfy for the whole night. Its shape can be customized to adapt to different ceilings

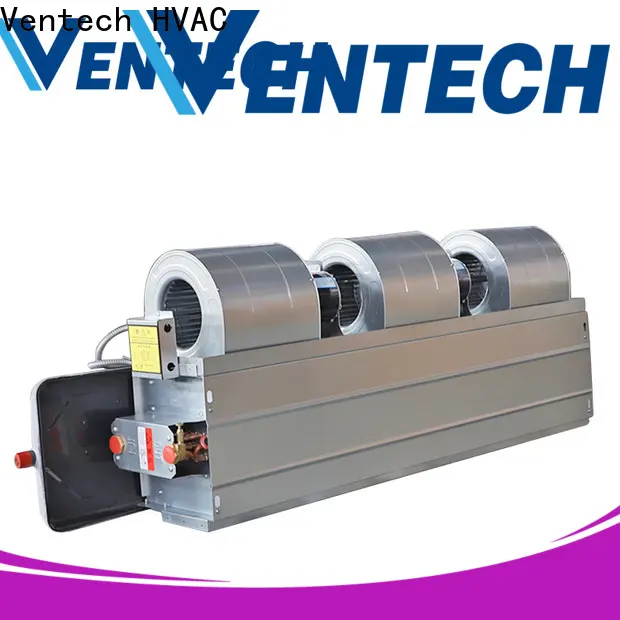

Horizontal Concealed Fan Coil Units for HVAC system Central air conditioner

Model FP WA-3				200	300	400	500	600	700	800	1000	1200	1400
Air volume	H		m3/h	340	510	680	850	1020	1200	1360	1700	2040	2380
	M			280	380	515	660	705	910	1040	1280	1560	1800
	L			1B0	260	340	430	530	610	710	860	1060	1190
Cooling capacity	H		W	2020	3010	3700	4560	5600	6400	7600	9000	10800	12600
	M			1683	2742	3000	3716	4424	5630	6435	7470	9296	10623
	L			1561	2293	2479	2921	3793	4905	5606	7200	8543	8820
Heating capacity	H		W	3500	5300	6700	8200	10100	10940	13500	15000	18900	20000
	M			2526	3533	5153	5954	7099	8057	9906	11560	15163	18600
	L			1682	2321	3449	4258	4833	S558	6774	7500	10085	14240
Motor	Input power(H)	Normal ESP (12Pa)	W	37	52	62	76	96	113	134	152	189	228
		High ESP (30Pa)		44	69	72	87	108	134	156	174	212	253
		Super High ESP (50Pa)		49	66	84	100	118	158	174	210	250	300
Heat exchanger (3-pipe)	Cooling/ Heating	Water flow	m3/h	0.367	0.517	0.638	0 796	0.978	1.128	1.371	1.516	1 822	2.152
Heat exchanger (3-pipe)	Cooling/ Heating	Water drop pressure	kPa	17	22	18	20	30	20	30	30	30	40
Noise	H	Normal ESP (12Pa)	dB(A)	≤37	≤39	≤41	≤43	≤45	≤47	≤46	≤48	≤50	≤52
		High ESP (30Pa)		≤40	≤42	≤44	≤46	≤47	≤49	≤48	≤50	≤52	≤54
		Super High ESP (50Pa)		≤42	≤44	≤46	≤47	≤49	≤51	≤50	≤52	≤54	≤56
Dimension	Length		mm	655	785	885	945	1065	1185	1405	1525	1725	1925
	Width			496	466	466	466	466	466	466	466	466	466
	Height			243	243	243	243	243	243	243	243	243	243
Unit weight	No return air box		KG	12	14	16	17	18	19	26	29	32	35


Temperature control parts (optional)

Mechanical thermostat(KWK-378)
* Temperature setting range: 10℃~30℃）
* Manual switch cooling /heating
* Mechanical gas filled case tempreature sensor,which has 100 thousands life
* Controlling room temperature accurately at ± 1℃

Large LCD controllor(KWK-811)
* Elegant in shape.meets different decoration style
* Large LCD,operating simple and convenient
* Easy intallation,apply 86x86 standard cable case,has a wide range of application.
* Wireless remote is optional.

Electric 2-way valves(KSF-202)
* Forged by brass.durable service.
* Stainless base and AL alloy shell.
* Full closed 1-way hysteresis motor.
* Stainless spring return.
* Install and disassemble easily without.
* any tool,convenient to use.
* Rubber cores,low noise when closing.
* 2 wires switch.

ABOUT US

Ventech(Vcare) Whole-house Healthy & Comfortable Air conditioning system, is Committed to provide people with a healthy and comfortable home living environment.

Ventech(Vcare)’s talent technical engineers keep improving the efficiency of the system according to the needs of the market. And Based on a 40,000㎡ modern factory and more than 300 professional workers, Ventech provides high quality Whole-house Healthy & Comfortable Air conditioning system.

How to Get a Quick Quotation of Central AC product?
1. Project Drawing,building layout,equipment BOQ.
2. Project name:building name or building type,such as xxx office project,residential house project etc.
3. Expected shipping date of this project.
4. Project type: tender or self-owned.

Want to learn more about VENTECH(Vcare) Central air conditioner unit,please contact us by email directly.

Company Features
1. Yingde Ventech Air Conditioning Co.,Ltd provides its customers with an outstanding price-performance fan coil unit . Yingde Ventech Air Conditioning Co.,Ltd has huge capital and advanced production technology for fan coil units for sale .
2. Apart from the customized design, we also pay more attention to the quality of fan coil unit supplier .
3. Ventech has enough capability to produce ac fan coil unit with . We believe good communication is the foundation. Our company has made great efforts to create an environment for positive communication with clients built on collaboration and trust.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
