Ventech supply air diffuser factory

Company Advantages
1. Ventech supply air diffuser is well-controlled to minimize the impact at every step of the process - the extraction of raw materials to processing and manufacturing, transportation, and construction. Its shape can be customized to adapt to different ceilings
2. The product keeps stable rise of sales in the market and is taking larger market share. This product is available in a broad range of models
3. The product excels in performance, durability and usability. This product is available in various kinds of powder coating

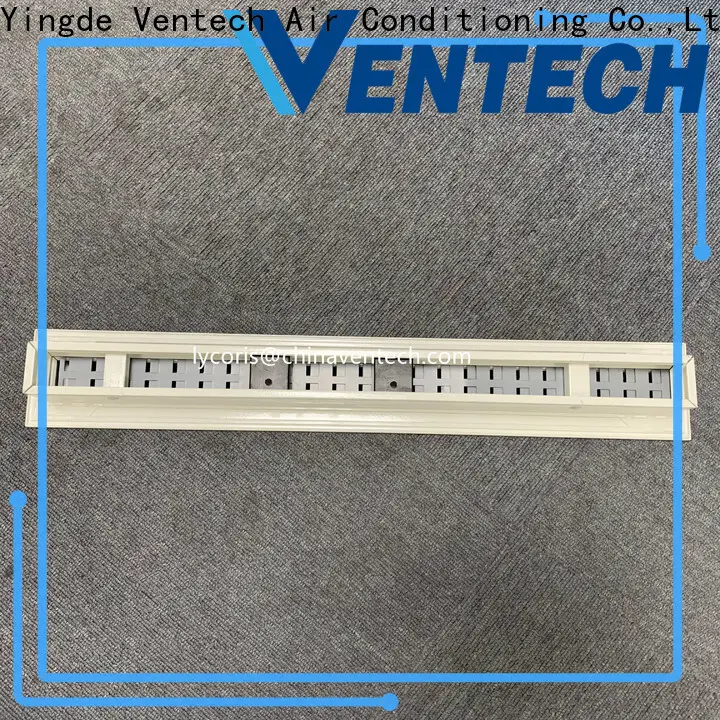

LINEAR SLOT DIFFUSER



VENTECH Linear Slot Diffusers are an attractive alternative to the ceiling or high sidewall supply diffusers. Slot diffusers can be installed individually in set lengths or in a continuous line. They can also be installed in any type of ceiling application.



The modules are available with a 20mm or 25mm Slot with the number of slots ranging from 1 to 6 slots and are further available as fixed or removable core. (Fixed Core - Model LSD-VA, Removable Core – LSD-VB.)



The air pattern control is adjustable from the diffuser face and is achieved by means of an adjustable pattern control with each slot, enabling a full 90º air pattern adjustment. The suggested volume control should be from the main duct run take-off, or from a butterfly damper fitted to the inlet of the cushion head box.

Features:

• ·Concealed screw fixing

  ·Finish: off white standard, other colors on demand

  ·Made from high grade extruded aluminum profiles & sheets.

  ·Accessories: Hit & miss damper, plenum box-top/side entry connection

Details:

• Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
• Material thickness: 1.2mm
• Accessory: Adaptor Optional





Drawing- with Adaptor











Company Features
1. Yingde Ventech Air Conditioning Co.,Ltd is a specialist manufacturer of in China. We have been at the forefront of this industry since establishment. We have a team specializing in project management. Their attention to detail, responsiveness to schedule requirements and analysis results are combined to provide timely and accurate guidance for our customers.
2. We have served more customers from all over the world in recent years. At this moment, our sales network has already covered the whole USA, Germany, Japan, South Africa, Russia, and other countries and regions.
3. Our manufacturing team consists of experienced specialists. With their years of expertise and great sensitivity, they can produce high-quality products both standard and custom. Our team at Ventech HVAC gives customers the best support and products. Call now!
