Wall Mounted Supply Register Aluminum Ventilation Double Deflection Air Square Diffuser Ceiling Grille with Adjustable Blades

Professional Air Ceiling Diffusers and Air Grilles Manufacturer

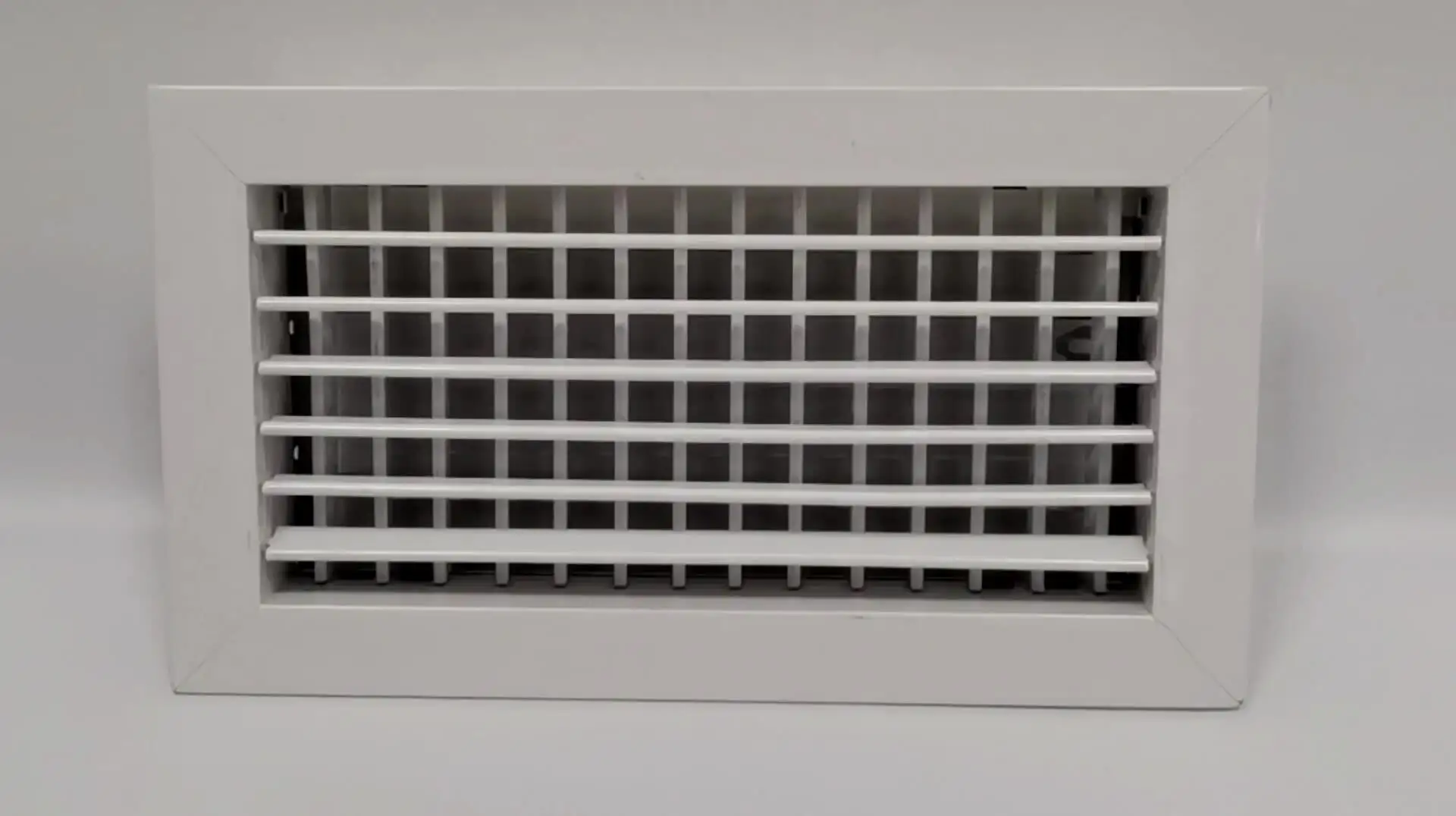

DOUBLE DEFLECTION GRILLE

t

VENTECH Air Grilles are widely used in HVAC ventilation system as the air supply or air return grilles. With adjustable blades, it's easier to adjust the air flow direction according to the practical needs. It has one layer grilles and double layers grille.

Double Deflection Air Grille is usually uased as air supply outlet and also can be used directly with fan coil unit. It's widely-used in central air conditioning terminal equipment. Double deflection air grille also can be used with multi-blade opposed air damper used for adjusting air volume.

Features:

• Sizes: Customized
• Made of aluminium
• For variable and constant volume flows
• Made up of two sets of air blades, vertical set in front and the horizontal set behind.
• The blade can be adjusted in any direction between o~180 degree. With the adjustment of different angle of the blade, you can get different reach distance and diffusion angle.
• Quick and easy to fix, concealed fixing

Details:

• Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
• Material thickness: 1.0mm
• Accessory: Oppose Blade Damper
• Installing: Mounting by screws or spring clips

Drawing & Data:

ACCESSORY: OPPOSE BLADE DAMPER
