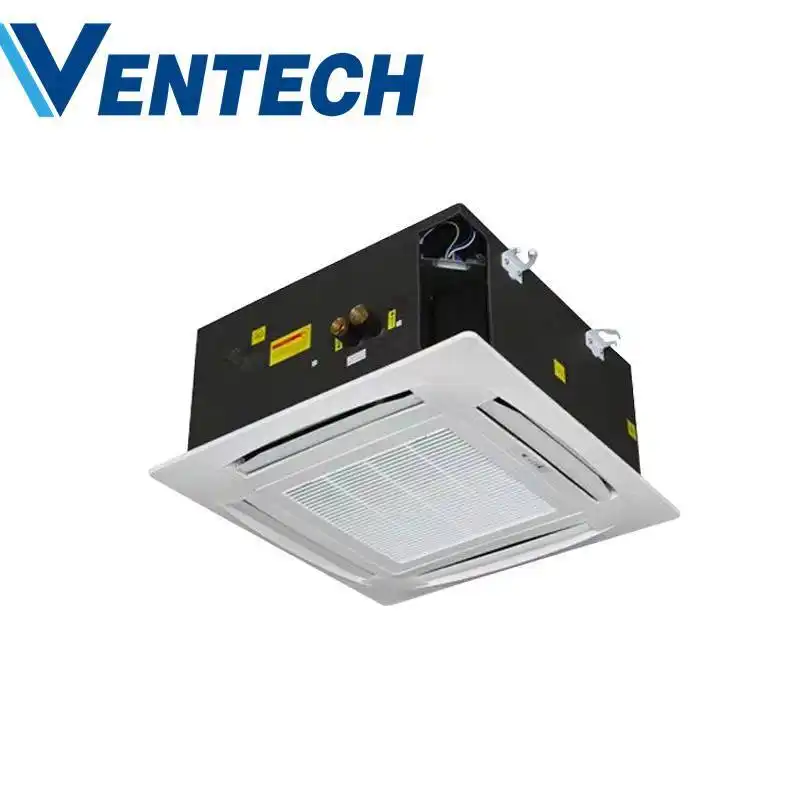

Air conditioning unit 23 000 btu central air conditioner Cassette Fan coil unit

Model No.:

FP400KM4

MOQ:

150pcs

Payment:

T/T,L/C

Delivery Time:

30 days after receiving prepayment

Loading Port:

Shenzhen,China

Logo:

VENTECH/VCARE/OEM

samples:

Yes(in charge)

shipping:

sea shipping

Customization:

yes

Air supply:

360~2390 m3/h

Refrigerant:

R22,R407C,R410A

Inquiry

Write a Review

Product Information

Ceiling cassette FCU for HVAC system Central Air Conditioner.

Function: Cooling, Electrical heating, Heat Pump, Thermostatic and humidistatic, fresh air, DC inverter.

Refrigerant	R22, R407C, R410A
Cooling Capacity	1000-10000W
Heating Capacity	1000-20000W
Condition	New
Air Volume	200-3000m³/h

Product Feature

1-Panels and frame are made of galvanized steel, properly punched for fixing both accessories and the unit itself.

2-The coils are made of seamless tubes expanded into aluminum fins in continuous block. The connections have brass headers with female fittings and provided with easily accessible vent and drainage valve.

3-Thanks to the rigidly bolted panel, dynamic and static balancing test of fans, maximum to reduce the vibration and noise. Coupled with high quality insulation material inside the unit, superb low noise performance is achieved.

4-The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.

Air conditioning unit 23 000 btu central air conditioner Cassette Fan coil unit 2

Product Description

1-Panels and frame are made of galvanized steel, properly punched for fixing both accessories and the unit itself.

4-The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.

Model				FP200KM2-3*	FP300KM2-3*	FP400KM2-3*	FP500KM2-3*	FP600KM2-3*
Air volume	H		m3/h	340	510	680	850	1020
	M			280	380	515	660	765
	L			180	260	340	430	530
Coolling capacity	Total	H	W	2020	3010	3830	4770	5960
	Total	M	W	1683	2742	3191	3938	4882
	Total	L	W	1561	2293	2637	3096	4186
Heating capacity	H		w	3030	4515	5745	7155	8940
	M			2187	3088	4190	5196	6284
	L			1456	1978	2957	3715	4278
Noise level	H	Standard	dB(A)	≤40	≤42	≤44	≤46	≤47
Dimension	Length		mm	898	998	1098	1208	1318
	Width			600	600	600	600	600
	Height			480	480	480	480	480
Unit weight	Standard		kg	37	42	47	50	55

Model				FP700KM2-3*	FP800KM2-3*	FP1000KM2-3*	FP1200KM2-3*	FP1400KM2-3*
Air volume	H		m3/h	1200	1360	1700	2040	2380
	M			910	1040	1280	1550	1800
	L			610	710	860	1050	1190
Coolling capacity	Total	H	W	6620	7580	9520	10800	12600
	Total	M	W	5916	6775	8301	9296	10623
	Total	L	W	5154	5900	7640	8534	8056
Heating capacity	H		w	9930	11370	14280	16200	18900
	M			7313	8342	11078	12997	16807
	L			5046	5707	7396	8645	13422
Noise level	H	Standard	dB(A)	≤47	≤48	≤50	≤52	≤54
Dimension	Length		mm	1558	1708	1808	1918	2018
	Width			600	600	600	600	600
	Height			480	480	480	480	480
Unit weight	Standard		kg	65	75	79	87	92

ABOUT US

Ventech(Vcare) Whole-house Healthy & Comfortable Air conditioning system, is Committed to provide people with a healthy and comfortable home living environment.

Ventech(Vcare)’s talent technical engineers keep improving the efficiency of the system according to the needs of the market. And Based on a 40,000㎡ modern factory and more than 300 professional workers, Ventech provides high quality Whole-house Healthy & Comfortable Air conditioning system.

How to Get a Quick Quotation of Central AC product?

1. Project Drawing, building layout, equipment BOQ.
2. Project name:building name or building type, such as xxx office project, residential house project etc.
3. Expected shipping date of this project.
4. Project type: tender or self-owned.
