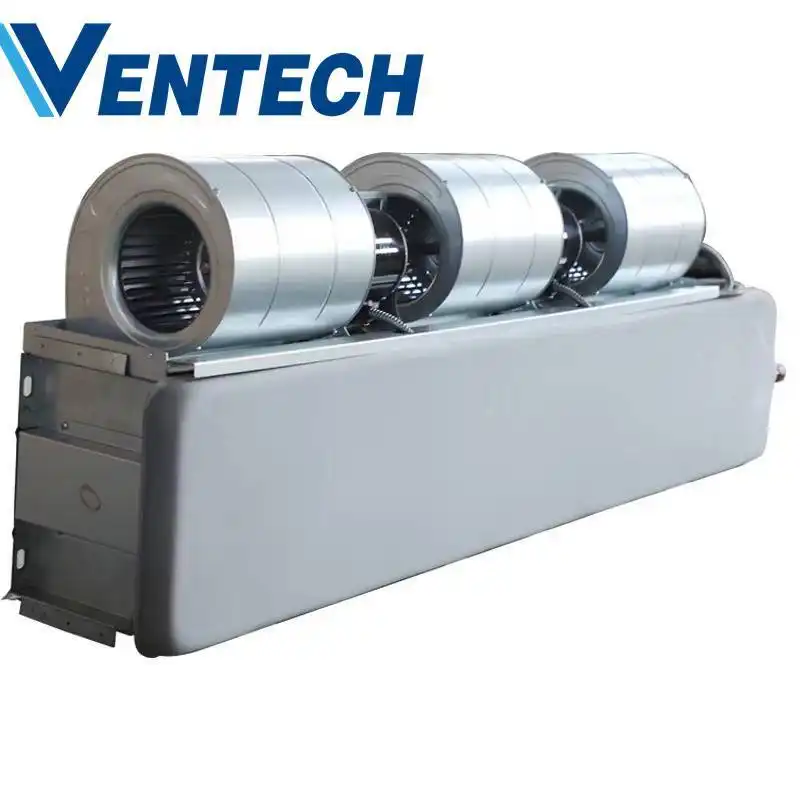

Air conditioning unit central air conditioner for sale Horizontal Concealed Fan Coil Units1

Model No.:

FPD

MOQ:

150pcs

Payment:

T/T,L/C

Delivery Time:

30 days after receiving prepayment

Loading Port:

Shenzhen,China

Logo:

VENTECH/VCARE/OEM

samples:

Yes(in charge)

shipping:

sea shipping

Customization:

yes

Air supply:

2000~5000 m3/h

Refrigerant:

R22,R407C,R410A

Inquiry

Write a Review

Horizontal Concealed Fan Coil Units for HVAC system Central Air Conditioner.

Function: Cooling, Electrical heating, Heat Pump, Thermostatic and humidistatic, fresh air, DC inverter.

Product Feature

1) Remark: Motor input power in this table are whole motor power,may not single one.

2) Design and test according to the GB/T 1923202993.We supply the non-standard product upon request.

3) Standard cooling cap,was tested and carried out in environment of EAT 27℃，DB 19.5℃,EWT 7℃,LWT 12℃.

4) Standard heating cap,was tested and carried out in evnironment of DB 21℃,EWT 60℃,water volume equals to cooling.

5) Noise level is testing standard GB/T 19232-2003.

6) In above table,H means the high velocity,M means the middle velcoity,L means the low velocity.

7) The blower and motor can be installed to be removable upon customer requests(The same figure size.)

8) Opitional mixing box.

9) The cooling and heating capacity have to multiply factor 0.94 while changing the connection at construction site.

Air conditioning unit central air conditioner for sale Horizontal Concealed Fan Coil Units1 2

Model FP WA-3				200	300	400	500	600	700	800	1000	1200	1400
Air volume	H		m3/h	340	510	680	850	1020	1200	1360	1700	2040	2380
	M			280	380	515	660	705	910	1040	1280	1560	1800
	L			1B0	260	340	430	530	610	710	860	1060	1190
Cooling capacity	H		W	2020	3010	3700	4560	5600	6400	7600	9000	10800	12600
	M			1683	2742	3000	3716	4424	5630	6435	7470	9296	10623
	L			1561	2293	2479	2921	3793	4905	5606	7200	8543	8820
Heating capacity	H		W	3500	5300	6700	8200	10100	10940	13500	15000	18900	20000
	M			2526	3533	5153	5954	7099	8057	9906	11560	15163	18600
	L			1682	2321	3449	4258	4833	S558	6774	7500	10085	14240
Motor	Input power(H)	Normal ESP (12Pa)	W	37	52	62	76	96	113	134	152	189	228
		High ESP (30Pa)		44	69	72	87	108	134	156	174	212	253
		Super High ESP (50Pa)		49	66	84	100	118	158	174	210	250	300
Heat exchanger (3-pipe)	Cooling/ Heating	Water flow	m3/h	0.367	0.517	0.638	0 796	0.978	1.128	1.371	1.516	1 822	2.152
Heat exchanger (3-pipe)	Cooling/ Heating	Water drop pressure	kPa	17	22	18	20	30	20	30	30	30	40
Noise	H	Normal ESP (12Pa)	dB(A)	≤37	≤39	≤41	≤43	≤45	≤47	≤46	≤48	≤50	≤52
		High ESP (30Pa)		≤40	≤42	≤44	≤46	≤47	≤49	≤48	≤50	≤52	≤54
		Super High ESP (50Pa)		≤42	≤44	≤46	≤47	≤49	≤51	≤50	≤52	≤54	≤56
Dimension	Length		mm	655	785	885	945	1065	1185	1405	1525	1725	1925
	Width			496	466	466	466	466	466	466	466	466	466
	Height			243	243	243	243	243	243	243	243	243	243
Unit weight	No return air box		KG	12	14	16	17	18	19	26	29	32	35

ABOUT US

Ventech(Vcare) Whole-house Healthy & Comfortable Air conditioning system, is Committed to provide people with a healthy and comfortable home living environment.

Ventech(Vcare)’s talent technical engineers keep improving the efficiency of the system according to the needs of the market. And Based on a 40,000㎡ modern factory and more than 300 professional workers, Ventech provides high quality Whole-house Healthy & Comfortable Air conditioning system.

How to Get a Quick Quotation of Central AC product?

1. Project Drawing, building layout, equipment BOQ.
2. Project name:building name or building type, such as xxx office project, residential house project etc.
3. Expected shipping date of this project.
4. Project type: tender or self-owned.
