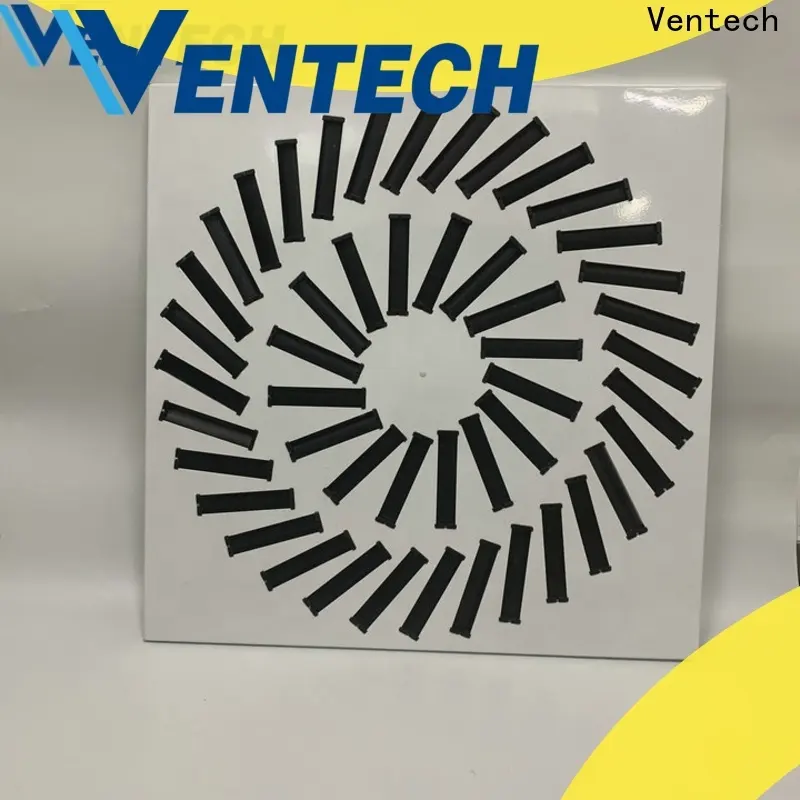

SWIRL DIFFUSER - VD type

VENTECH Ceiling swirl diffusers in air conditioning systems create a swirl to supply air to rooms. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. Ceiling swirl diffusers allow for large volume flow rates. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.

Ceiling swirl diffusers have adjustable air control blades. Different air patterns allow for cooling or heating mode, or for the adjustment to varying loads. Horizontal air discharge is Omni directional.

Features:

• 1. Diffuser face made of galvanized sheet steel, powder-coated.
  2. For supply and extract air.
  3. For all types of ceiling systems, and with an extended border also suitable for freely suspended installation.
  4. High induction results in a rapid reduction of the temperature difference and airflow velocity.
  5. Horizontal swirling supply air discharge for mixed flow ventilation.
  6. Ideal for comfort zones.
  7. For high room air change rates.

Details:

• Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
• Material thickness: 0.7mm
• Accessory: Adaptor Optional
• Face Size: 295X295,395X395,495X495,595X595
• Blades: 8,10,12,16,24,28,48,32

TYPE

DRAWING OF SWIRL DIFFUSER WITH ADAPTOR
