Hot Selling round supply air diffuser supplier

Company Advantages
1. Ventech has passed the necessary inspections. It must be inspected in terms of moisture content, dimension stability, static loading, colors, and texture. It can maintain the integrity of ceiling construction
2. Each pattern on the product has a global correlation and regional characteristics. The color works well with the environment to make the product easy to use. This product is perfectly suitable for damp areas such as toilets and bathrooms
3. The product has stable performance and long service life which our customers are greatly satisfied with. This product is less likely to get deformed under pressure
4. The QC team is highly responsible for the quality of the product. This product is available in a broad range of models

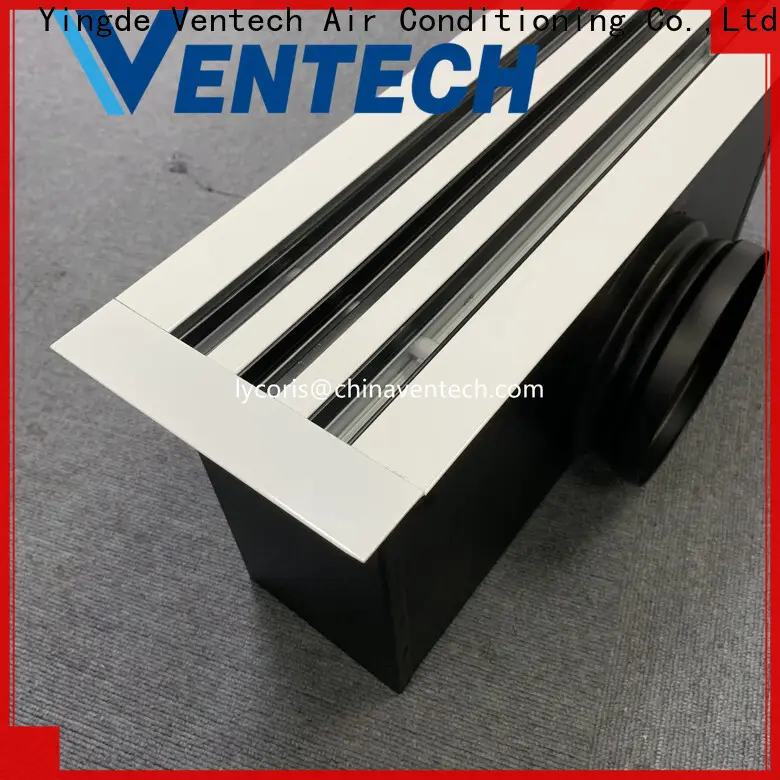

LINEAR SLOT DIFFUSER



VENTECH Linear Slot Diffusers are an attractive alternative to the ceiling or high sidewall supply diffusers. Slot diffusers can be installed individually in set lengths or in a continuous line. They can also be installed in any type of ceiling application.



The modules are available with a 20mm or 25mm Slot with the number of slots ranging from 1 to 6 slots and are further available as fixed or removable core. (Fixed Core - Model LSD-VA, Removable Core – LSD-VB.)



The air pattern control is adjustable from the diffuser face and is achieved by means of an adjustable pattern control with each slot, enabling a full 90º air pattern adjustment. The suggested volume control should be from the main duct run take-off, or from a butterfly damper fitted to the inlet of the cushion head box.

Features:

• ·Concealed screw fixing

  ·Finish: off white standard, other colors on demand

  ·Made from high grade extruded aluminum profiles & sheets.

  ·Accessories: Hit & miss damper, plenum box-top/side entry connection

Details:

• Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
• Material thickness: 1.2mm
• Accessory: Adaptor Optional





Drawing- with Adaptor











Company Features
1. As a well-known multi-national corporation, Yingde Ventech Air Conditioning Co.,Ltd has world-wide sales network and manufacturing base.
2. Ventech owns its own factory to produce round supply air diffuser with high quality.
3. To achieve sustainability, we will adopt the latest green manufacturing technology. We believe the application of the technology will improve sustainability and efficiency no matter in production methods or resource use.
