Hvac air conditioning air terminals hinged type return grille

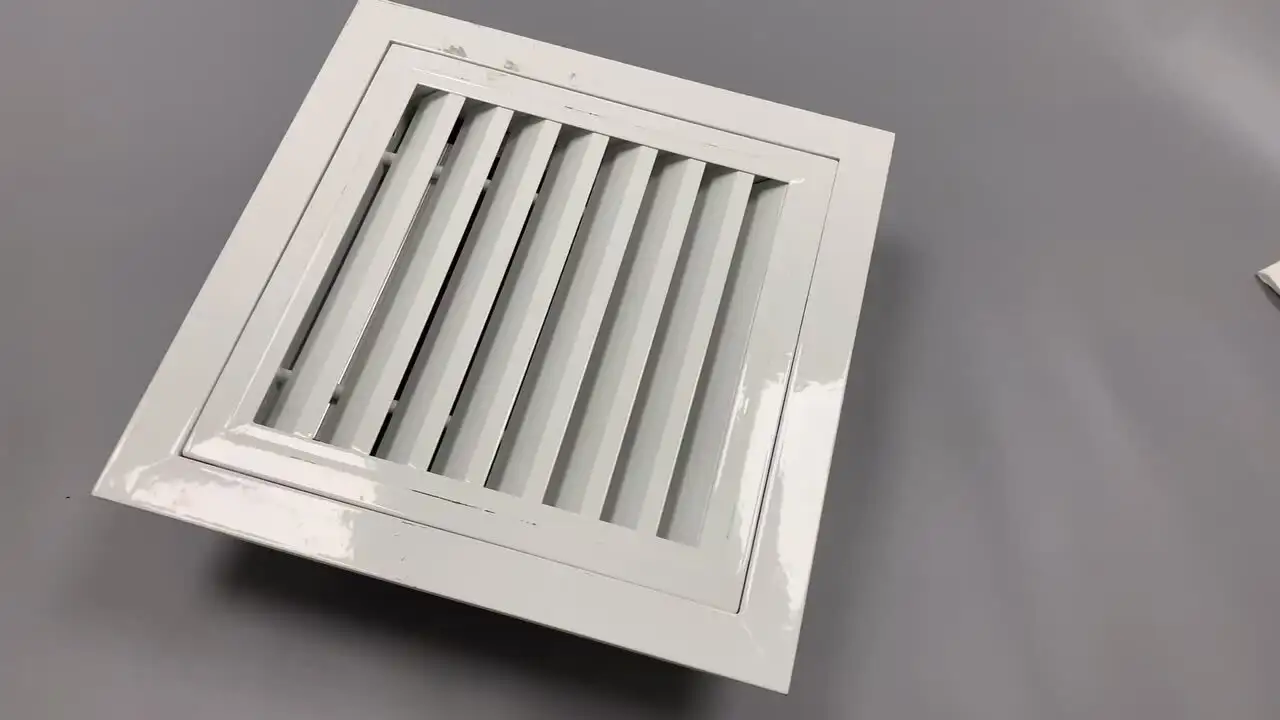

 45 Degree Blades Hinged Type Return Grille:

Hinged  Type Return grille is rectangular aluminium grille with 45 degree fixed deflectors an removable cores. It can be used in commercial and industrial premises. The grille is intended for return air. It is build into wall, ceiling, or window sill. Return grille is supplied with springs as a standard. As an accessory there are dampers, clips or screws available.

Design
Hinged type return grille is manufactured from natural anodized aluminium profiles white painted to RAL 9010 or RAL 9016. Dimensions are customer sizes.

Mounting
Hinged type return grille can be mounted directly into a duct or wall with clips or screws.

 Drawings&sizes:

PRODUCT FEATURES

These return air grilles can be used to help circulate air in residential and commercial buildings. They feature dual electrocoated/powder-coated surface treatments to help provide excellent corrosion resistance.

1. For exhaust air.

2. Blades are fixed in 45°angle.

3. For installation in walls or ceilings.

4. Made of extruded aluminum, powder coated.

5. Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.

6. Available in RAL colors, or Anodized color.

Product details:

Fixed type return grille RG-VA:

Package:

10 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
