    Overview
    Quick Details
    Warranty:5 years
    After-sale Service:Online technical support, Free spare parts, Other
    Project Solution Capability:graphic design, total solution for projects, Others
    Application:Apartment
    Design Style:EUROPEAN
    Place of Origin:Guangdong, China
    Brand Name:VENTECH
    Model Number:LSD-VA
    Material:Aluminum
    Function:Return Air
    Feature:Adjustable
    Usage:Air Conditioning Terminal
    Shape:Rectangle
    Color:White
    Video Description

    1. Description:

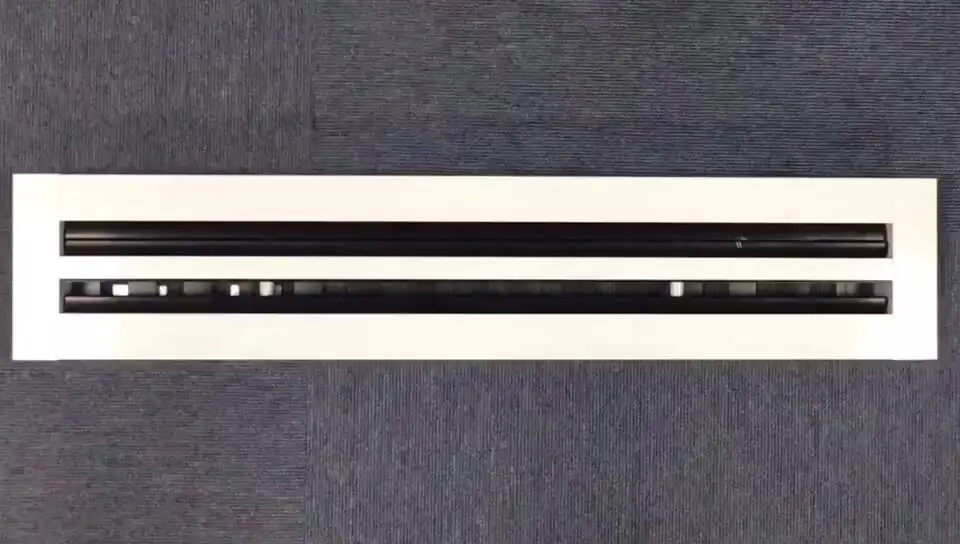

    * The linear slot diffuser is a type of air ouotlet with 1 or more slots. It is typically used in meeting rooms or hotel.

     * The linear slot diffuser repersents the most popular air distribution design option for almost any interior applications .It's blades are adjustable to facilitate accurate control of air flow direction.Specially designed hit and miss damper allows for easy control of air volume.

     * Suitable for rooms with ceiling heights from 2.5m to 4m.Available in 1 to 5 slots configuration .

    2. Colour :

    * White: RAL 9010, RAL9016,RAL9003

    * Anodized

    * Other color available as client's need



    3. Product Drawing:





    4. Standard size details:



    Slot Distance Slots A B H
    20 1 84 40 49
    20 2 120 76 49
    20 3 155 111 49
    20 4 191 147 49
    20 5 226 182 49
    20 6 262 218 49
    25 1 89 45 49
    25 2 130 86 49
    25 3 170 126 49
    25 4 211 167 49
    25 5 251 207 49
    25 6 292 248 49







    6. Product details:



    Yingde Ventech Air Conditioning Co.,Ltd's product structure is reasonable and its categories are complete. This product is available in a broad range of models. Through several years of operation, Yingde Ventech Air Conditioning Co.,Ltd has formed mature management system. This product is available in a broad range of models.
