HVAC Ceiling Air Diffuser Ventilation Fresh Air Return Grille1

Type:

HVAC Systems,Ventilation

Lead_Time:

1 - 600(Pieces):15(days),>600(Pieces):Negotiable(days)

shipping:

Sea freight

Customization:

Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:1 Year

After-sale Service:Return and Replacement

Project Solution Capability:NONE

Application:Mall, Air Conditioning Ventilation System

Design Style:Modern

Place of Origin:China

Brand Name:VENTECH

Model Number:RG-VA

Item name:RETURN GRILLE

Color:Customized Color

Airflow:50-1300CMH

Thickness:1.0mm

Material:Aluminum Alloy

Function:Air Outlet

Size:Standard Size

Installation:Ceiling/Wall Mounted Installation

Feature:45 dergee blades

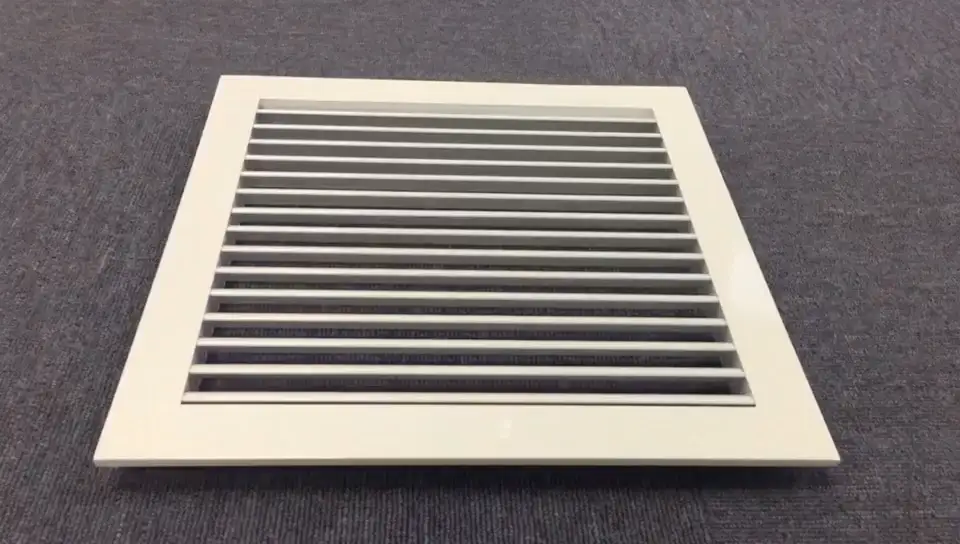

45 Degree Blades Return Grille:

Return grille is rectangular aluminium grille with 45 degree fixed deflectors and can be used in commercial and industrial premises. The grille is intended for return air. It is build into wall, ceiling, or window sill. Return grille is supplied with springs as a standard. As an accessory there are dampers, clips or screws available.
Return grille is manufactured from natural anodized aluminium profiles white painted to RAL 9010 or RAL 9016. Dimensions are customer sizes.
Return can be mounted directly into a duct or wall with clips or screws.

Drawings&sizes:

These return air grilles can be used to help circulate air in residential and commercial buildings. They feature dual electrocoated/powder-coated surface treatments to help provide excellent corrosion resistance.

1. For exhaust air.

2. Blades are fixed in 45°angle.

3. For installation in walls or ceilings.

4. Made of extruded aluminum, powder coated.

5. Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface. 6. Available in RAL colors, or Anodized color.

Product details:

Package:

10 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.

Packing Details:

*Neutral packing: export standard carton.
*Unit packing: heat-shrink film packing for each product, plastic protect corner is optional.
*All of the productions are inspected carefully by QC before delivery.

Delivery Time:
*Normally 30 days production time after receiving the deposit.
*Urgent orders could be on priority.
Min. Order
*If order based on EXW terms, no MOQ is required.
*If order based on FOB or CNF or CIF terms, there’s MOQ for your options.
*Container orders will have more favorable price.

FAQ:

Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 50 countries!!!

Q: What's the MOQ?
A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.

Q: Can you provide free sample?
A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.

Q: What's the delivery time?
A: the delivery time is about 30days.

Q: what's the payment term?
A: T/T, L/C

Q: Can we buy under our own logo?
A: No problem.

Q: What is the quality?
A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!

Q: Can I be a VENTECH brand distributor?
A: Yes, you can. Pls contact us for more details.

This product brings enhanced attractiveness. It gives a clean, sophisticated, and unique appearance, which is now associated with contemporary design. This product has been optimized with minimal leakage. It performs satisfactorily in normal use. A good fit is achieved as the subjects will feel comfortable in it and tasks can be performed well. This product has been optimized with minimal leakage.
