Overview

Quick Details

Warranty:1 Year

After-sale Service:Return and Replacement

Project Solution Capability:NONE

Application:Mall, Air Conditioning Ventilation System

Design Style:Modern

Place of Origin:China

Brand Name:VENTECH

Model Number:DV-VE/VS

Item name:Metal disc valve

Color:Customized Color

Airflow:30-300CMH

Thickness:0.7mm

Material:GI Sheet

Function:Air Outlet and Inlet

Size:Standard Size

Shape:Round shape

Installation:Ceiling/Wall Mounted Installation

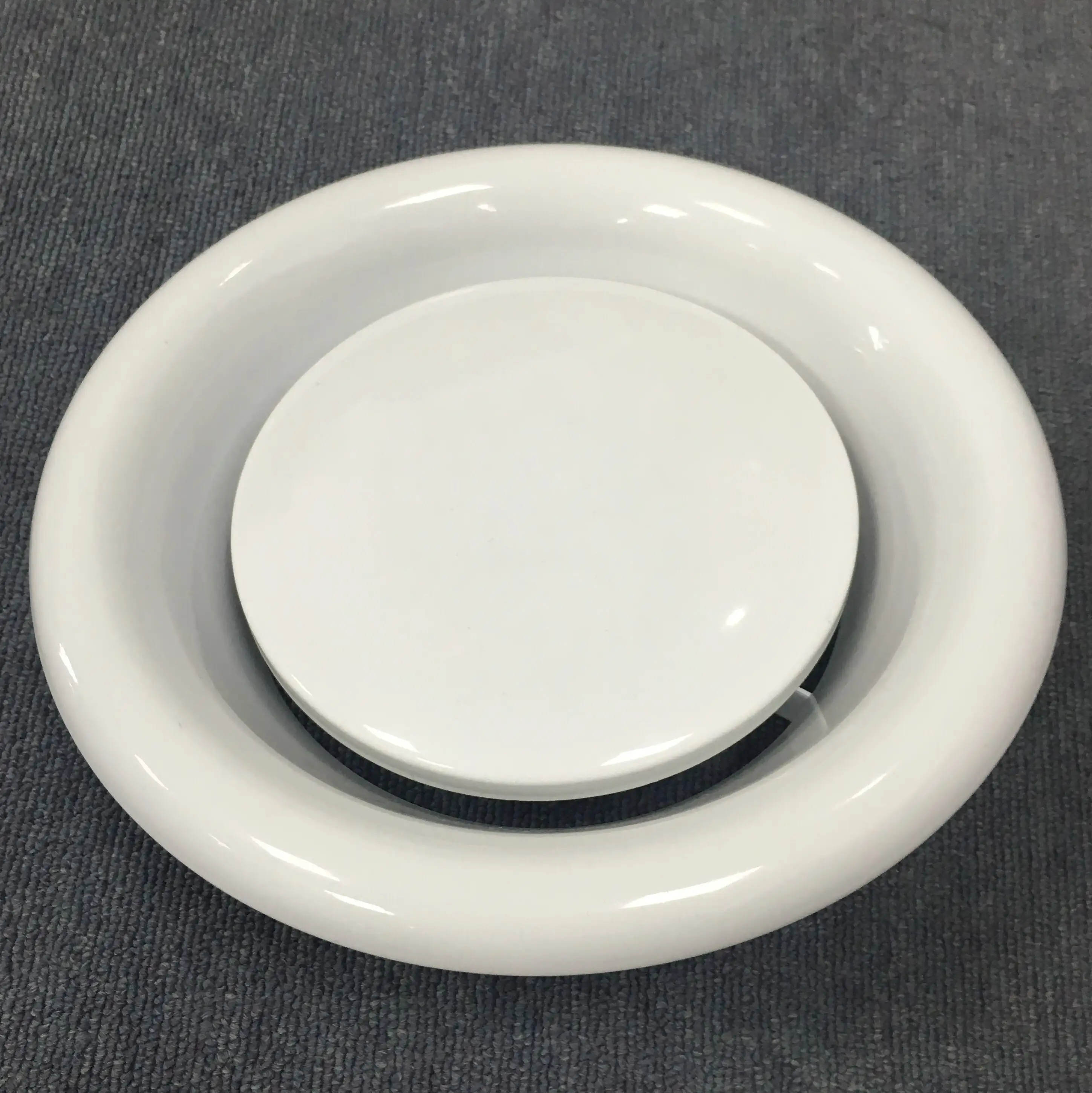

Metal disc valve:

VENTECH Disc valves are best suited to air distribution systems handling relatively low air flow rates within small circular duct
work. It is recommened for air supplying of small space,exhaust of greasy and damp air in damp areas
such as toilets, bathrooms and kitchens.
The molds of the disc valve are typically installed in hotels, flats ,apartments, halls of residence and hospitals .Serving
as both a fresh air outlet and exhaust air inlet .

Drawing&Size:

Specification:
The frame & disc are high quality GI sheet construction with powder coating of RAL colors.
Disc is fixed to the frame by threaded rod.
Air flow can be adjusted by regulating the cone up and down(+A or -A)
Foam gasket is sealed around the back of the frame to avoid the air leakage.

Disc valves are best suited to air distribution systems handling relatively low air flow rates within small circular duct work. It is recomm-ened for exhaust of greasy and damp air in damp areas such as toilets, bathrooms
It can be mounted in the wall, ceiling or exposed to air ducts with mounting rings

Surface finish:
Powder coated color finish as per RAL color----standard color: RAL9016, 9010

Product details:

Package:

10 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.

Packing Details:

*Neutral packing: export standard carton.
*Unit packing: heat-shrink film packing for each product, plastic protect corner is optional.
*All of the productions are inspected carefully by QC before delivery.

Delivery Time:
*Normally 30 days production time after receiving the deposit.
*Urgent orders could be on priority.
Min. Order
*If order based on EXW terms, no MOQ is required.
*If order based on FOB or CNF or CIF terms, there’s MOQ for your options.
*Container orders will have more favorable price.

FAQ:

Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 50 countries!!!

Q: What's the MOQ?
A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.

Q: Can you provide free sample?
A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.

Q: What's the delivery time?
A: the delivery time is about 30days.

Q: what's the payment term?
A: T/T, L/C

Q: Can we buy under our own logo?
A: No problem.

Q: What is the quality?
A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!

Q: Can I be a VENTECH brand distributor?
A: Yes, you can. Pls contact us for more details.

The reproduction of a real-world color is made possible by this product that gives an amazing color quality. That’s why this product tops our sales list. This product is available in various kinds of powder coating. All the features of this product guarantee an image true to the projected source for all viewers, regardless of their seating position. This product is available in various kinds of powder coating.
