Hvac Single Deflection Grille (SDG-VA)

Type:

HVAC Systems,Ventilation

Lead_Time:

1 - 50(Pieces):15(days),>50(Pieces):Negotiable(days)

shipping:

Sea freight

Customization:

Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:1 Year

After-sale Service:Other, NONE

Project Solution Capability:NONE

Application:Office Building/Hotel/School, Air Conditioning Ventilation System

Design Style:Industrial

Place of Origin:Guangdong, China

Brand Name:Ventech

Model Number:SDG-VA

Product name:Single Deflection Grille

Material:Aluminum

Color:RAL9010/RAL9016/Anordized

Accessories:Oppose Blade Damper Optional

Type:Wall Mounted

Video Description

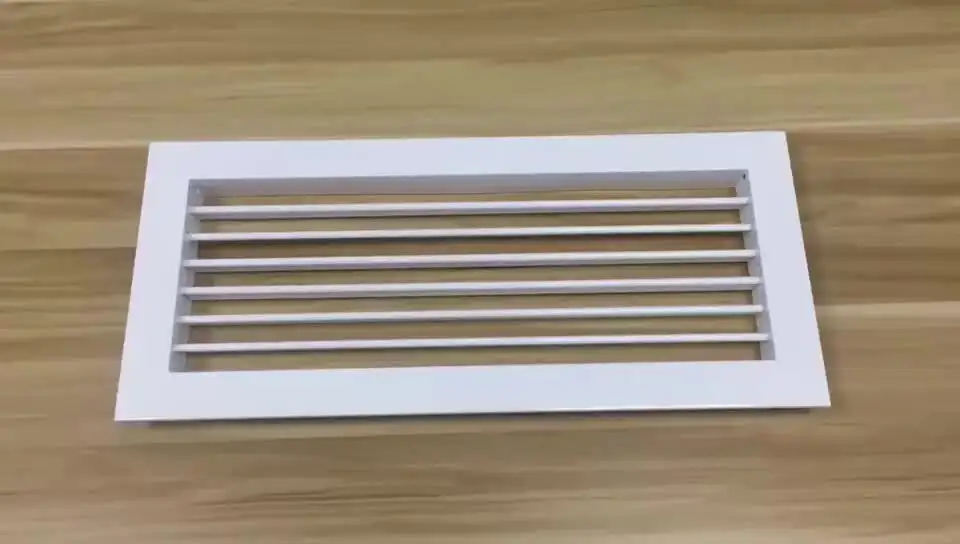

VENTECH Single Deflection Grille

Product name	Single Deflection Grille
Material	Aluminum
Installation	ceiling/wall mounted
Function	Exhaust air/Return air
Thickness	1.0mm
Size	Customized Size
Accessories	Oppose Blade Damper Optional
Color	RAL9016/RAL9010/Anordized
Package	10PCS/CTN
Type	Air terminal units
Product Keywords	Fixed Single Deflection Air Grille,Single Deflection Air Inlet Louver,High Quality Single Deflection Grill

Product description

Make of high quality extruded aluminum profile .All size available Supply air grille (HVAC part , air register,single deflection supply air grille.

The aluminum grille has two models :double deflection grille and single deflection grille.
To reduce the flow resistance and noise ,blades can be streamlined design .

The single deflection grille is commonly installed in hotel rooms for supply of conditioned air.It incorporates two seperate sets of adjustable blades.Users can easily control the air flow direction via adjusting the orientation of the blaeds .

In order to secure the grille into place,we supply customers with easy mounting clips which would save installation time. These usually shaped blades are made of high quality plastics by using innovative production technologies

Product feature

(1)Ventilation grille the type rectangular double deflection grille is as supply air or extract air variant for comfort zones and
industrialzones. Ready-to-install component which consists of a border and individually adjustable, horizontal and vertical double layer blades.
(2)Directed supply air discharge for mixed flow ventilation.
(3)Blades are individually adjustable to meet different local requirements.
(4)For installation in walls.

(5)Made of extruded aluminum, powder coated.

(6)Concealed fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.

Yingde Ventech Air Conditioning Co.,Ltd is expanding its position as market leader. It can remain undisturbed in the ceiling or wall. Yingde Ventech Air Conditioning Co.,Ltd always manages to make sure customers are getting what they need. It can remain undisturbed in the ceiling or wall.
