Hvac System Air Ventilation Aluminium Adjustable Return Air Vent Door Grille

Type:

HVAC Systems,Ventilation,HVAC1,HVAC2,HVAC3,HVAC4,HVAC5,HAVC6,HVAC7,HVAC8

Lead_Time:

1 - 50(Pieces):15(days),>50(Pieces):Negotiable(days)

samples:

US$1.00/Pieces, 1 Piece (Min. Order)

shipping:

Sea freight

Customization:

Customized logo (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Graphic customization (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:1 Year

After-sale Service:Online technical support

Project Solution Capability:graphic design

Application:Office Building, Hvac Ventilation System

Design Style:Contemporary

Place of Origin:Guangdong, China

Brand Name:VENTECH

Model Number:DG-VA

Item name:Transfer Air Door Grille

Color:RAL9010/RAL9016/Anordized

Airflow:80-1000CMH

Thickness:1.0mm

Material:Aluminum

Function:Exhaust air/Return air

Size:Standard Size

Installation:Door mounted

Finish:Powder coating or Anodized

VENTECH DOOR GRILLE

Item name	Door Grille
Application	Hvac Ventilation System
Color	RAL9010/RAL9016/Anordized
Airflow	80-1000CMH
Thickness	1.0mm
Material	Aluminum
Function	Exhaust air/Return air
Size	Standard Size
Installation	Door mounted
Finish	Powder coating or Anodized
Product Keywords	grille air vent,aluminium air vent door,adjustable ventilation grille

Product description

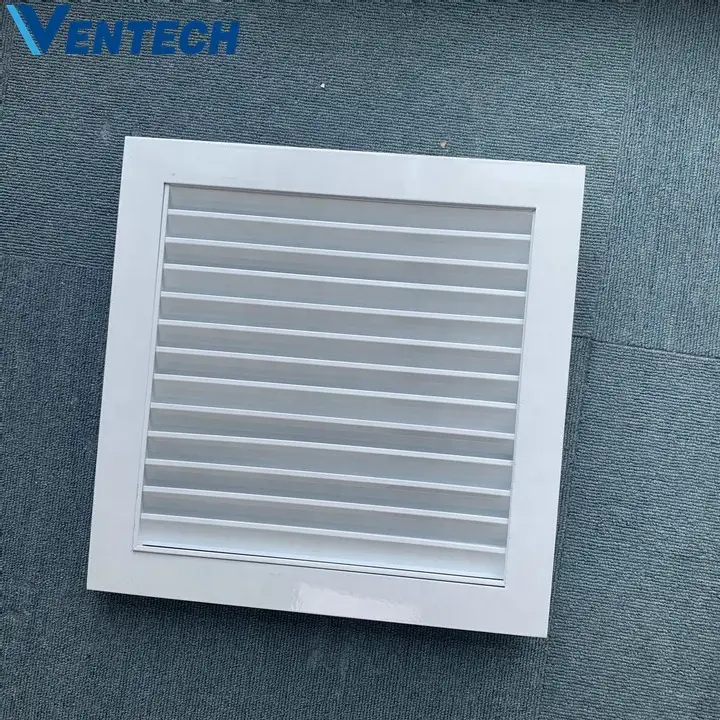

The DG door transfer grilles are designed for use in doors where constant air transfer with non-vision is required.
The DGC door transfer cavity grille are the most economical form of grilles for partitions, panels or sliding doors.
The DGC is manufactured as per the DG but in a channel frame. Core is installed and secured using timber beading or angles.
Standard colour finish is RAL9016, RAL9010 and Anordized.
The DG is an all aluminium construction, complete with backing frame to suit door thicknesses of 33mm to 52mm. The core consists of chevron blades fixed to provide sight-proof characteristics. Standard finish is natural anodised.

For many people, this product can be dressed for years to come. It will not simply be discarded after one or two seasons. This product is perfectly suitable for damp areas such as toilets and bathrooms. It gives customers a more pleasant and safer quality of sleep at night. With this product, one doesn't have to worry anymore about the quality of sleep at night. This product is perfectly suitable for damp areas such as toilets and bathrooms.
