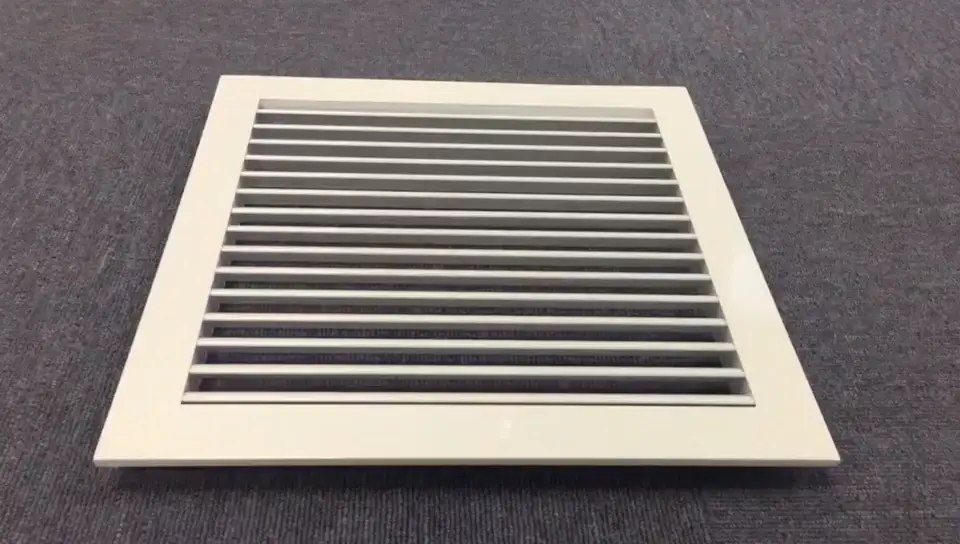

Hvac System Aluminum Air Vent Return Air Grilles

Type:

HVAC Systems,Ventilation

Lead_Time:

1 - 50(Pieces):15(days),>50(Pieces):Negotiable(days)

shipping:

Sea freight

Customization:

Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:1 Year

After-sale Service:Online technical support

Project Solution Capability:graphic design

Application:Office Building, Air Conditioning Ventilation System

Design Style:Contemporary

Place of Origin:Guangdong, China

Brand Name:VENTECH

Model Number:RG-VB

Item name:RETURN GRILLE

Color:Customized Color

Airflow:50-1300CMH

Thickness:1.0mm

Material:Aluminum

Function:Exhaust air/Return air

Size:Standard Size

Installation:Ceiling/Wall Mounted Installation

Feature:45 dergee blades

Video Description

VENTECH RETURN GRILLE

Item name	Return Grille
Application	Air Conditioning Ventilation System
Color	RAL9010/RAL9016/Anordized
Airflow	50-1300CMH
Thickness	1.0mm
Material	Aluminum Alloy
Function	Exhaust air/Return air
Size	Customized Size
Installation	Ceiling/Wall Mounted Installation
Feature	Fixed 45 degree blades
Product Keywords	hvac toilet grill,air return grille with filter,aluminum air vent grille for cabinet doors

Product description

*Make of high quality extruded aluminum profile .Fixed blades in 45°.
*The return air grille takes the air in the room and returns it to the air conditioning or ventilation system.
*This type of return air grille comes with specially designed blades.The blade geometry and distance between two adjacent blades
are accurately calculated to achieve maximum air flow performance and create an aesthetically pleasing appearance.
*In order to secure the grille into place,we supply customers with easy mounting clips which would save installation time.
*Ventilation grille the type fixed blade return grille is as extract air variant for comfort zones and industrial zones.

Product feature

(1)For exhaust air.
(2)Blades are fixed in 45°angle.
(3)For installation in walls or ceilings.
(4)Made of extruded aluminum, powder coated.
(5)Concealed clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an
installation surface.
