Overview
Quick Details
Warranty:1 Year
After-sale Service:Online technical support
Project Solution Capability:graphic design
Application:Office Building, Air Conditioning Ventilation System
Design Style:Contemporary
Place of Origin:Guangdong, China
Brand Name:VENTECH
Model Number:SCD-VC
Item name:Ceiling Tile 4 Way Square Diffuser
Color:Customized Color
Airflow:150-800CMH
Thickness:1.0&0.8mm
Material:Aluminum Alloy
Function:Air Outlet
Size:Standard Size
Installation:Ceiling/Wall Mounted Installation
Accessories:Damper available

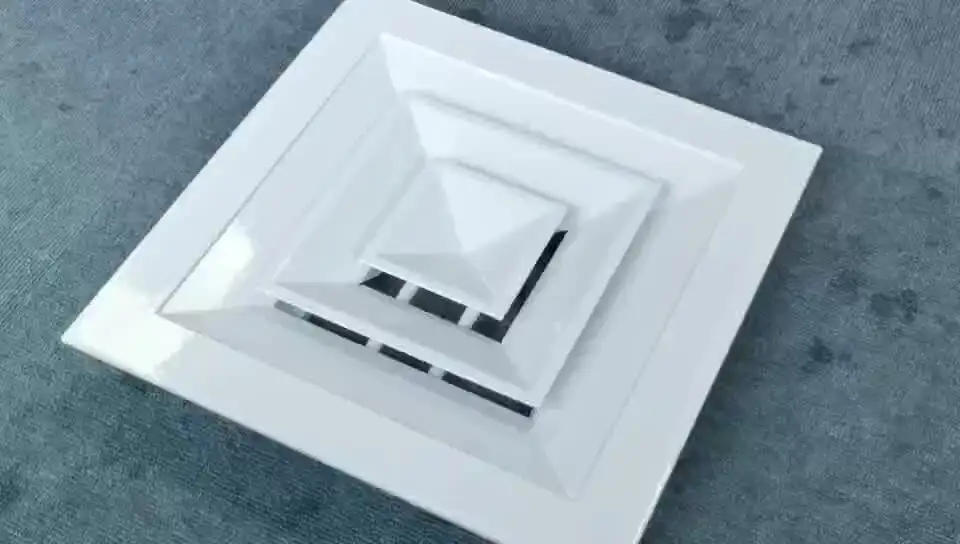

VENTECH SQUARE CEILING DIFFUSER
Product name | Square Ceiling Diffuser |
Material | Aluminum |
Installation | ceiling/wall mounted |
Function | supply air |
Thickness | 1.0mm |
Size | Customized Size |
Accessories | Oppose Blade Damper Optional |
Color | RAL9016/RAL9010 |
Package | 10PCS/CTN |
Type | Air terminal units |
Product Keywords | diffuser louver,roof ventilation systems,4way square ceiling diffuser |
Product description
details and are available with a wide array of frame styles for easy integration with modular ceiling systems.
* The Square Ceiling diffuser features large square and rectangular inlets for reduced inlet velocity, resulting in low sound and pressure drop even at high airflows.
* The Square Ceiling diffuser is highly configurable with multiple core styles, airflow patterns, and optional features to tailor this product to specific applications.
* The Square Ceiling diffuser is well suited to applications that require large volumes of airflow at low sound and pressure drop. Concentrated airflow is discharged from each active side of the diffuser, resulting in longer throws that are ideal for high ceiling applications.
Product feature
(1)Supply or return air applications.
(2)Complete assembly from extruded aluminium sections.
(3)Rigid, heavy gauge extruded frames with reinforce.
(4)Mitered and welded corners.
(5)Special patterns are available.(6)Powder coating finish, standard color white.
(7)Size manufactured on request.
All the features make this product highly demanded on the market. It has a low noise level even at relatively high velocities.
The product is provided as per the precise needs of the customers in the market. It has a low noise level even at relatively high velocities.
