Hvac System Grilles Plastic Return High Quality Double Deflection Supply Air Grille For Ventilation

Type:

HVAC Systems,Ventilation

Lead_Time:

1 - 600(Pieces):15(days),>600(Pieces):Negotiable(days)

samples:

US$1.00/Pieces, 1 Piece (Min. Order)

shipping:

Sea freight

Customization:

Customized logo (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Graphic customization (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:1 Year

After-sale Service:NONE, Other

Project Solution Capability:NONE

Application:Office Building, Air Conditioning Ventilation System

Design Style:Contemporary

Place of Origin:Guangdong, China

Brand Name:Ventech

Model Number:DDG-VA/DDG-VB/DDG-VD

Product name:Double Deflection Grille

Material:Aluminum

Shape:Rectangle

Color:RAL 9003/9010/9016

Accessories:Oppose Blade Damper Optional

Type:Wall Mounted

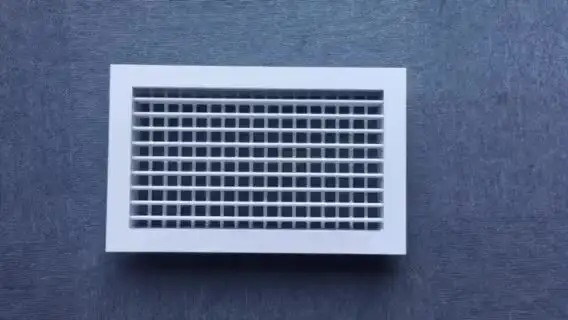

VENTECH DOUBLE DEFLECTION GRILLE

Item name	Double Deflection Grille
Application	Air Conditioning Ventilation System
Color	RAL 9003/9010/9016
Material	Aluminum
Accessories	Oppose Blade Damper Optional
Type	Wall Mounted
Product Keywords	supply air grille sizing,double deflection air grill,aluminum double deflection air grilles

Product description

Ventilation grille the type rectangular double deflection grille is as supply air or extract air variant for comfort zones and
industrial zones. Ready-to-install component which consists of a border and individually adjustable, horizontal and vertical
double layer blades.
The frame is made of high quality extruded aluminum profile with advantages of corrosion resistance and rigidity.Core of hinged time can be easily removable and interchangeable for better installation and maintenance.

Product feature

(1)Directed supply air discharge for mixed flow ventilation.
(2)Blades are individually adjustable to meet different local requirements.
(3)For installation in walls or ceiling.
(4)Concealed fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.
(5)For horizontal installation into walls and bulkheads.

(6)DDG-VA is the standard one.DDG-VB & DDG-VD are both with removalbe blades which are thicker than blades of DDG-VA.

The product provides benefits for people by increasing comfort and well-being and helping to maintain the healthy air quality of buildings. It is easy to mount without the use of tools. One of our buyers said that this product makes my building become more energy-efficient. It will help save my energy costs in the long term. It is easy to mount without the use of tools.
