Hvac System Ventilation Ceiling Conditioning Aluminum Air Duct Supply Linear Slot Diffuser Price

Type:

Air Conditioning,HVAC Systems

Lead_Time:

1 - 100(Pieces):8(days),>100(Pieces):Negotiable(days)

samples:

US$1.00/Pieces, 1 Piece (Min. Order)

shipping:

Sea freight

Customization:

Customized logo (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Graphic customization (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:1 Year

After-sale Service:Online technical support

Project Solution Capability:graphic design

Application:Office Building

Design Style:Contemporary

Place of Origin:Guangdong, China

Brand Name:VENTECH

Model Number:LSD-VA

Product name:Air Diffuser

Material:Aluminum

Installation:ceiling/wall mounted

Function:supply air

Thickness:1.0mm

Size:Customized Size

Accessories:Oppose Blade Damper Optional

Color:RAL9016/RAL9010or/customized

Package:10PCS/CTN

Type:Air terminal units

Video Description

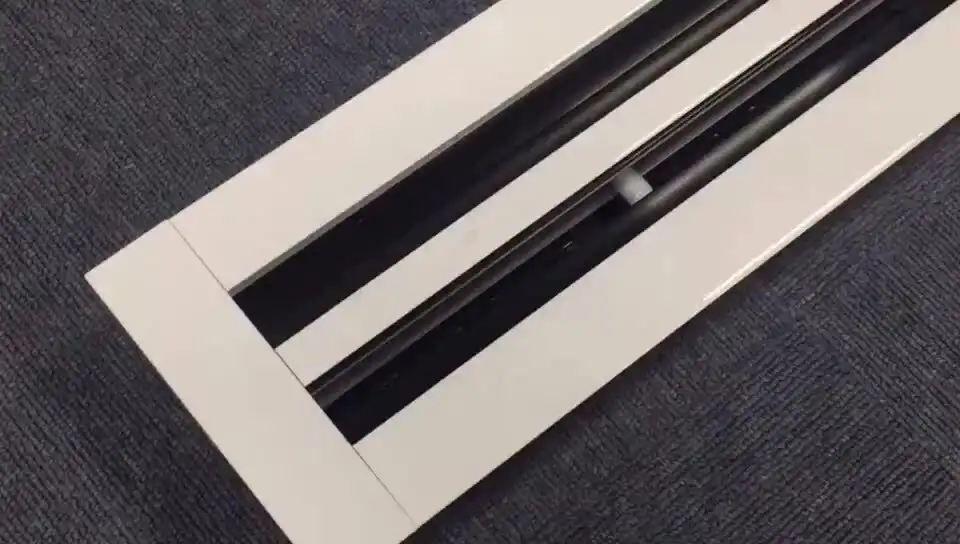

VENTECH Linear Bar Grille

Product name	Linear Slot Diffuser
Material	Aluminum
Model	LSD-VA/VB/VD
Thickness	0.6/0.7/0.8/0.9/1.0 mm
Accessories	Air Damper/ Plenum Box
Color	HVAC Duct System Installation
Usage	Supply Air/Return Air
Standard Color	White Ral 9016/9010/Customized
Product Keywords	Linear Slot Diffuser,Air Conditioning Linear Diffusers

Product description

VENTECH Slot Diffusers direct the air from air conditioning systems at an angle into the room. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air.
The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.
(1)Slot diffusers have adjustable air control elements. A hit & miss damper (optional) simplifies volume flow rate balancing for commissioning. Slot diffusers are space saving supply and extract air combinations.
(2)The linear slot diffuser repersents the most popular air distribution design option for almost any interior applications. It's blades are adjustable to facilitate accurate control of air flow direction.Specially designed hit and miss damper allows for easy control of air volume.

Product feature

(1)Nominal size: 1slot, 2slots, 3slots, 4slot, 5slots. Length customized.
(2)Diffuser made of extruded aluminum.
(3)High induction results in a rapid reduction of the temperature difference and airflow velocity.
(4)Butterfly damper optional.
(5)Individually adjustable air control elements to meet individual local requirements.

(6)For horizontal installation into walls and bulkheads.

(7)For high room air change rates. (8)LSD-VA is the standard one. LSD-VB is with the removable core.

Ventech has been an experienced enterprise that offering the life-time service timely. This product can be easily fixed and removed. This product creates benefits to customers with a promising prospect. This product can be easily fixed and removed.
