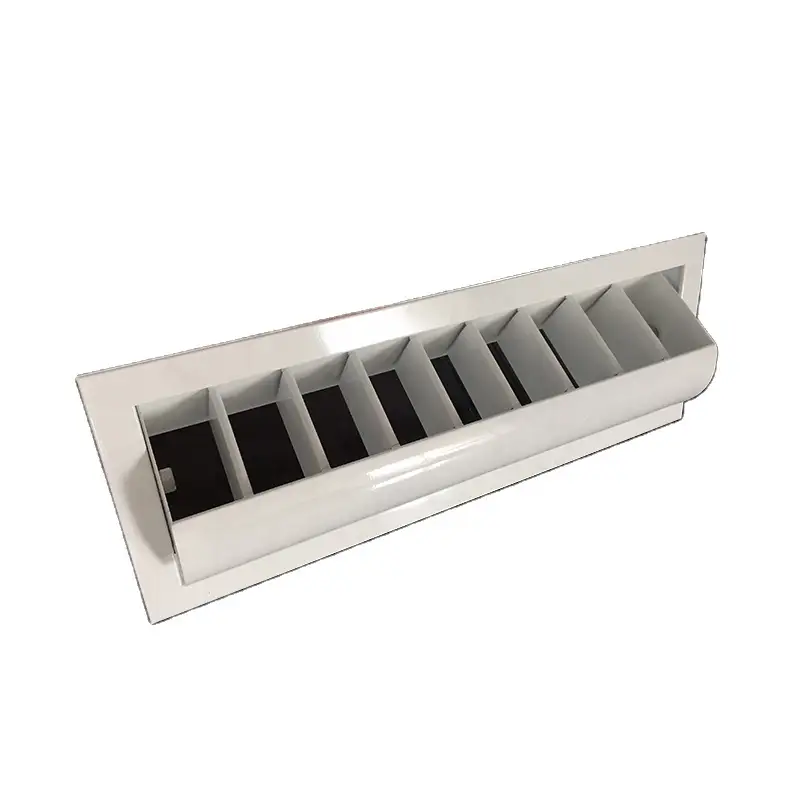

Hvac system ventilation duct working aluminum air drum jet diffuser
HVAC Drum Louver:
| General Information: HVAC Systems Aluminum Drum Jet Diffuser for long throws with best acoustic character in rectangular shape consisting of a semi-cylindrical revers-ible diffuser drum with individually adjustable blades. The HVAC Systems Aluminum Drum Jet Diffuser produces concerntrated air flow with the possibility of flow from side through special placement of blades. HVAC Systems Aluminum Drum Jet Diffuser is constructed from aluminium extrusions and incorporates a flanged frame for easy installation. |
| Body Features | |
| Frame Material | Aluminum alloy |
| Standard color | Ral9016 / Ral9010/ Customized RAL color |
| Application | Building/Shopping mall/Airport/ Theatre / Stadium |
| Function | Exhaust Air/Supply Air |
| Shape | Drum/Rectangular |
| Size | Customized Size |
| Place to install | Wall, Ceiling |
| Surface finish | Powder coated/anodized |
| Application | Residential/Commercial/HVAC |
Features:
1. Made of high quality aluminium profile
2. Adjustable drum part and blades.
3. Large Air Volume Supply Applications
4. Easy to intall and adjust.
5. Size as customized.
Color:
Standard RAL 9016 / RAL 9010 / Anodoized
Application:
| HVAC Systems Aluminum Drum Jet Diffuser is commonly seen in a large hall with a high ceiling, such as in the airport and exhibition hall. To satisfactorily supply a large volume of air into big open spaces such as shopping malls, leisure arenas and gymnasiums, requires a certain type of diffuser. Perfect for warehouses, factories, or other open plan areas requiring a diffuser with a throw strong enough to reach many metres away. This type of application is where the design features inherent in the Model JD-VG HVAC Systems Aluminum Drum Jet Diffuser are best demonstrated. |
Technical Drawing:
VENTECH Drum Jet Diffusers are inconspicuous and discharge air long distances to the occupied zone, such as airport, stadium, theatre.
1. The direction of the air stream from the drum jet nozzles can be easily adjusted manually to suit particular on site conditions.
2. The wide range of designs available, the flexibility in adapting to local conditions and compliance with low noise requirements.
3. For long distance supply air.
4. They can be multi design with a angel.
Product details:
Drum jet diffusers can be adjusted electrically or manually and work in heating or cooling modes. The Drum Jet Diffusers inner core can be adjusted within the range of ± 30°, and the inside blades can be adjusted left and right to control the air flow direction. The Drum Jet Diffuser connected to the wall by flanges.
Drum jet diffusers are used for preference where the supply air from the diffuser has to travel a large distance to the occupied zone. This is the case in large rooms (halls, assembly rooms etc.), particularly when the distribution of air via ceiling diffusers is not possible or not practical. Here Drum Jet Diffusers are arranged in the side wall areas.
Package:
2 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.
|
Packing Details: *Neutral packing: export standard carton. Delivery Time: |
|
FAQ:
Q: Are you a manufacturer? |
