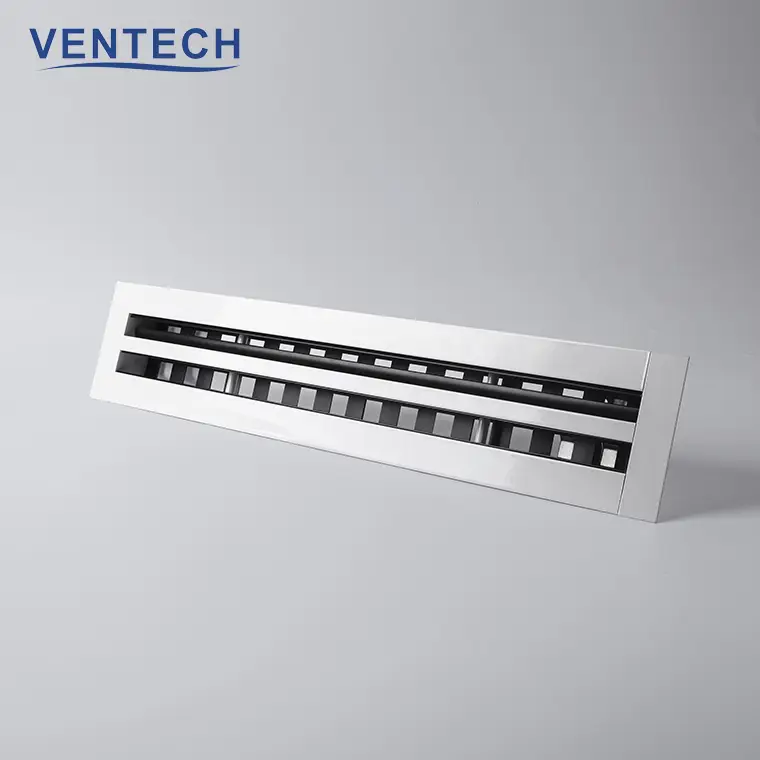

Linear Slot Air Diffuser (LSD-VA)

V E N T E C H

PRODUCT FEATURES

VENTECH Slot Diffusers direct the air from air conditioning systems at an angle into the room. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.

1. Nominal size: 1slot, 2slots, 3slots, 4slot, 5slots. Length customized.
2. Diffuser made of extruded aluminum.
3. High induction results in a rapid reduction of the temperature difference and airflow velocity.
4. Butterfly damper optional.
5. Individually adjustable air control elements to meet individual local requirements.
6. For horizontal installation into walls and bulkheads
7. For high room air change rates.
8. LSD-VA is the standard one. LSD-VB is with the removable core.

The Square Ceiling diffuser features large square and rectangular inlets for reduced inlet velocity, resulting in low sound and pressure drop even at high airflows.

The Square Ceiling diffuser is highly configurable with multiple core styles, airflow patterns, and optional features to tailor this product to specific applications.

The Square Ceiling diffuser is well suited to applications that require large volumes of airflow at low sound and pressure drop. Concentrated airflow is discharged from each active side of the diffuser, resulting in longer throws that are ideal for high ceiling applications.
