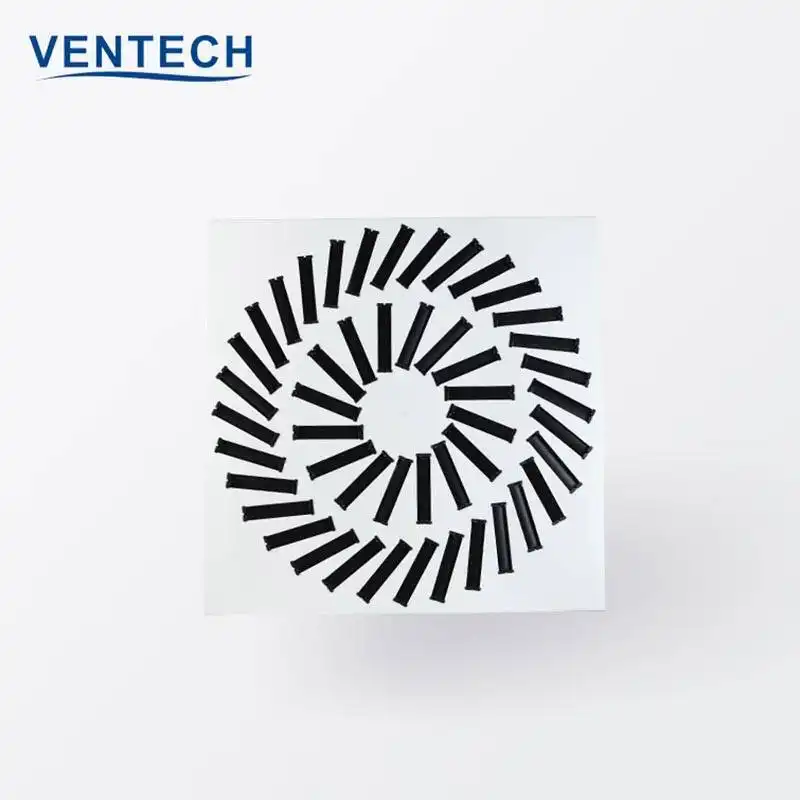

Square Swirl Diffuser(SD-VD)

V E N T E C H

PRODUCT FEATURES

High capacity, Square ceiling directional diffusers blend harmoniously with architectural details and are available with a wide array of frame styles for easy integration with modular ceiling systems.

1.Supply or return air applications.
2.Complete assembly from extruded aluminium sections.
3.Rigid, heavy gauge extruded frames with reinforce.
4.Mitered and welded corners.
5.Special patterns are available.
6.Powder coating finish, standard color white.
7.Size manufactured on request.

The Square Ceiling diffuser features large square and rectangular inlets for reduced inlet velocity, resulting in low sound and pressure drop even at high airflows.

The Square Ceiling diffuser is highly configurable with multiple core styles, airflow patterns, and optional features to tailor this product to specific applications.

The Square Ceiling diffuser is well suited to applications that require large volumes of airflow at low sound and pressure drop. Concentrated airflow is discharged from each active side of the diffuser, resulting in longer throws that are ideal for high ceiling applications.

PRODUCT PARAMETERS

PRODUCT DETAILS
