    Overview
    Quick Details
    Warranty:1 Year
    After-sale Service:Return and Replacement
    Project Solution Capability:NONE
    Application:Mall, Air Conditioning Ventilation System
    Design Style:Modern
    Place of Origin:China
    Brand Name:VENTECH
    Model Number:JD-VA
    Item name:Hvac jet diffuser
    Color:Customized Color
    Airflow:150-1300CMH
    Thickness:1.2mm
    Material:Aluminum Alloy
    Function:Air Outlet
    Size:Standard Size
    Shape:Eyeball shape
    Installation:Ceiling/Wall Mounted Installation

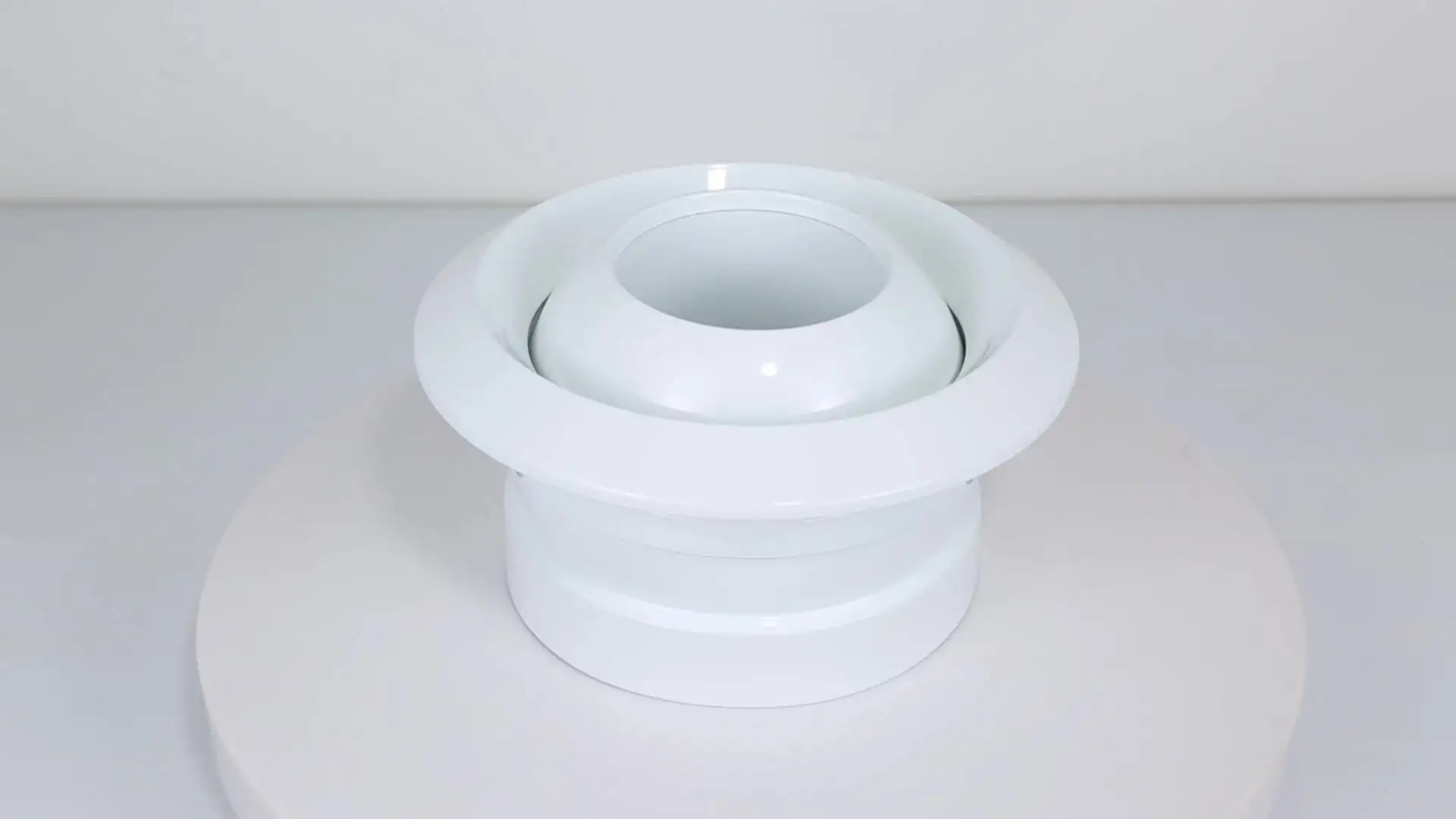

    Jet Nozzle



    VENTECH Jet nozzles are inconspicuous and discharge air long distances to the occupied zone. They can be adjusted electrically or manually and work in heating or cooling modes. Jet nozzles are used for preference where the supply air from the diffuser has to travel a large distance to the occupied zone. This is the case in large rooms (halls, assembly rooms etc.), particularly when the distribution of air via ceiling diffusers is not possible or not practical. Here jet diffusers are arranged in the side wall areas.





     Features:

    • Round Jet Diffuser,Ball Spout Jet Diffuser , High Ceiling Diffuser
    • It is a supply air diffuser for ceilling assembly.
    • It is suitable for airport, train station, theatorer or similar premises.
    • Made of High quality Aluminium sheet.
    • Removable core to allow for better flow direction.
    • Long distance throw at high outlet velocities.
    • ColorRAL9010,RAL9016,or Anodized.
    • Precise Picture or Sample Available.
    • Size:Dia 125mm, Dia 150/160mm, Dia 200mm, Dia 250mm, Dia 315mm, Dia 400mm, Dia 500mm, Dia 630mm.

     Drawings&sizes:





    Product details:









    Package:

    1 pcs/ctn, LCL in standard export pallets,FCL in 20GP,40GP,40HQ.

        Ball Spout Jet Diffuser Carton dimension
    125 170x170x110
    150/160 230x230x140
    200 290x290x175
    250 330x330x195
    315 430x430x265
    350 450x450x270
    400 510X510X300
    530 640x640x370
    600 800x800x450

    Packing Details:

    *Neutral packing: export standard carton.
    *Unit packing: heat-shrink film packing for each product, plastic protect corner is optional.
    *All of the productions are inspected carefully by QC before delivery.

    Delivery Time:
    *Normally 30 days production time after receiving the deposit.
    *Urgent orders could be on priority.
    Min. Order
    *If order based on EXW terms, no MOQ is required.
    *If order based on FOB or CNF or CIF terms, there’s MOQ for your options.
    *Container orders will have more favorable price.



    FAQ:



    Q: Are you a manufacturer?
    A: Yes, we are a professional manufacturer, and we have more than 15 years manufacturing and overseas sales experiences. Now we've sold our HVAC system air supply return ceiling diffuser to more than 50 countries!!!

    Q: What's the MOQ?
    A: The MOQ is 5000usd per order. Mixed supply ceiling diffuser is allowed.

    Q: Can you provide free sample?
    A: Yes, we could provide free sample of supply ceiling diffuser. But we don't pay for the delivery cost.

    Q: What's the delivery time?
    A: the delivery time is about 30days.

    Q: what's the payment term?
    A: T/T, L/C

    Q: Can we buy under our own logo?
    A: No problem.

    Q: What is the quality?
    A: we offer high quality products. VENTECH is famous for it's high quality and most competitive price!

    Q: Can I be a VENTECH brand distributor?
    A: Yes, you can. Pls contact us for more details.



    The product is widely recognized for its endurance for ages and is considered a energy-efficient solution for modern building construction. This product is perfectly suitable for damp areas such as toilets and bathrooms. The product ensures the long lifespan of the construction and makes the building capable of resisting damage caused due to different factors. This product is perfectly suitable for damp areas such as toilets and bathrooms.
