Model No.:

Modular Air Handing Unit

MOQ:

1 unit

Payment:

T/T,L/C

Delivery Time:

30 days after receiving prepayment

Loading Port:

Shenzhen,China

Logo:

VENTECH/Vcare/OEM

Color:

White

Model:

Modular Air Handing Unit

Minimum:

1 unit

Origin:

China

Brand:

VENTECH/Vcare/OEM

Inquiry

Company Advantages
1. Manufacturing Ventech requires different facilities. It is processed under stamping, coating, painting and drying equipment with high performance and high efficiency. Its dimension can be customized according to different applied areas
2. Using this product can develop people's self-satisfaction and pleasure. It helps them do works much easier and more efficient. It can maintain the integrity of ceiling construction
3. This product is thoroughly inspected as per the quality guidelines. It has a low noise level even at relatively high velocities
4. The product has been subject to thorough tests to ensure that it is excellent in quality, performance, functionality, etc. This product is less likely to get deformed under pressure
5. The product is the primary choice of customers worldwide for its high performance. This product meets the requirements of building regulations

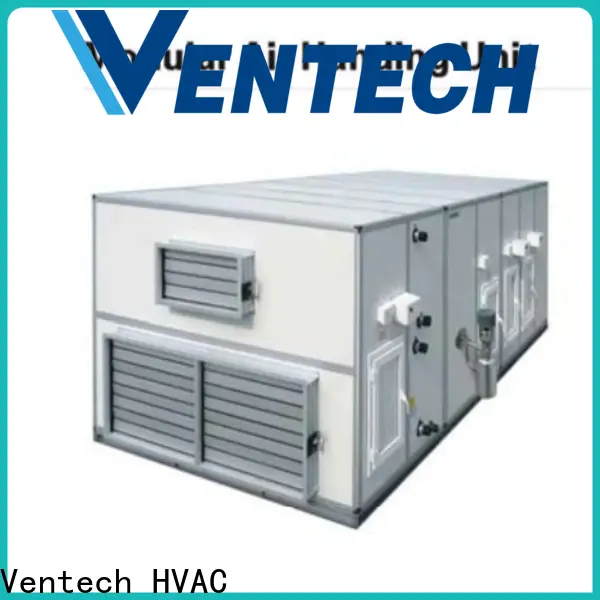

Best price Modular Air Handing Unit for HVAC system Central Air conditioner

Cooling coil capacity,steam coil capacity (return air) data

Tech	Airflow (m3/h)	Cooling coil								Vapor coil
Tech		Return air condition capacity(kW)				Fresh air condition capacity kW)				Return ar heating(kW)
Model		2-row	4-row	6-row	8-row	2-row	4-row	6-raw	8-raw	1-row	2-raw
VAH001	1000	3.8	6.2	7.9	8.8	7.7	12.6	16.4	18.4	11.4	21.2
VAH002	2000	7.3	12.0	15.3	17.1	15.6	25.6	33.3	37.4	22.9	42.8
VAH003	3000	11.6	19.0	24.2	27.0	23.2	38.1	49.6	47.7	34.4	64.3
VAH004	4000	14.1	23.1	29.5	32.9	31.3	51 4	66.9	75.1	45.1	84.2
VAH005	5000	17.7	29.0	37.0	41.3	39.3	64.5	84.0	94.3	56.4	104.4
VAH006	6000	21.7	35,	45.3	50.6	43.3	71.1	98.6	104.0	87.6	126.5
VAH007	7000	26.3	43.1	55.0	61.4	53.6	88.0	114.6	128.7	78.8	147.5
VAH008	8000	31.1	50.9	64.9	72.4	63.2	103.7	135.0	151 6	90.0	168.4
VAH009	9000	34.5	56.5	72.0	80.3	69.9	114.7	149.3	167.7	101.2	189.4
VAH010	10000	37.6	61.6	78.5	87.6	80.1	131.4	171.1	192.1	112.4	210.4
VAH012	12000	45.4	74.4	94.9	105.9	93.2	152.9	189.1	223.6	134.8	252.3
VAH014	14000	53.1	87.0	110.9	123.8	110.9	182.0	237.0	266.2	157.2	294.2
VAH016	16000	61.8	101.2	129.0	144.0	129.7	212S	277.1	311.2	179.6	336.2
VAH018	18000	70.7	115.8	147.6	164.7	148.1	243.0	316.4	355.3	202.0	378.1
VAH020	20000	80.4	131.7	167.9	187.4	164.3	269.6	351.0	394.2	225.6	421.2
VAH022	22000	84.1	137.8	176.7	196.1	170.4	279.6	364.0	408.8	252.3	467.5
VAH024	24000	92.3	151.2	192.8	215.2	194.5	319.2	415.6	466.7	266.3	500.9
VAH026	26000	100.1	164.0	200.1	233.3	210.2	344.9	449.0	504.2	293.3	547.6
VAH028	28000	107.8	178.6	225.2	251.3	220.3	361.5	470.7	S28.6	310.6	564.4
VAH030	30000	117.0	191.6	244.3	272.6	239.7	303.3	512.1	575.1	332.7	822.8
VAH035	36000	136.3	223.3	284.7	317.7	268.2	440.1	573.0	643.5	388.1	726S
VAH040	40000	156.1	256.7	326.0	363.8	307.5	504.6	657.0	737.3	443.5	830.2
VAH045	45000	169.2	277.2	363.4	394.4	364.4	581.6	757.2	850.3	498.9	933.9
VAH050	50000	181.8	297.8	379.7	423.7	393.3	645.4	840.3	943.7	564.3	1037.6
VAH055	55000	203.4	333.2	424.8	474.1	436.7	716.6	933.0	1047.8	609.7	1141.3
VAH060	60000	226.8	371.5	473.7	528.6	481.6	790.3	1029.0	1156.6	665.1	1245.0
VAH070	70000	266,7	436.9	667.0	621.6	548.2	899.6	1171.3	1315.4	775.9	1452.4
VAH080	80000	307.2	503.2	641.6	716.0	636.6	1044.7	1380.2	1527.5	886.7	1659.9
VAH090	90000	345.7	566.3	722.0	805.8	714.5	1172.5	1526.6	1714.4	997.5	1867.3
VAH100	100000	384 1	629.2	802.2	895.3	786.4	1290.5	1680.2	1886.9	1108.3	2074.7
VAH110	110000	398.4	652.6	832.1	928.6	-	-	-	-	1219.1	2282.1
VAH120	120000	41.3	678.8	865.2	985.6	-	-	-	-	1329.9	2489.5
VAH130	130000	452.9	741.9	945.9	1055.6	-	-	-	-	1440.7	2696 9
VAH140	140000	491.8	806.6	1027.1	1146.2	-	-	-	-	1551.5	2904.4
VAH150	150000	523.7	857.8	1083.7	1130.6	-	-	-	-	1662.3	3111.8
VAH160	160000	557.2	912.7	1163.7	1298.7	-	-	-	-	1745.0	3279.3
VAH170	170000	586.3	960.4	1224.5	1366.5	-	-	-	-	1854.0	3484.3
VAH180	180000	616.0	1009.0	1296.5	1435.7	-	-	-	-	1963.1	3689.2
VAH190	190000	647.1	1060.0	1351.5	1508.3	-	-	-	-	2072.1	3894.2
VAH200	200000	678.5	1111.4	1417.0	1581.4	-	-	-	-	2143.6	4061.5
VAH220	220000	736.4	1206.2	1537.9	1716.3	-	-	-	-	2399.3	4609.0
VAH250	2S0000	817.6	1339.2	1707.5	1905.6	-	-	-	-	2879.5	5029.9

*Cold water cooling condition: return air :DB 27℃/WB 19.5℃; fresh air DB35℃/WB28℃;cold water inlet/outlet 7℃/12℃.
*Heat water cooling condition: return air :DB 15℃/fresh air DB 7℃;inlet/outlet water: 60℃/50℃.
*Heating retur air condition: DB 15℃,fresh air:DB 7 ℃/vapor inlet:115℃,pressure:0.2Mpa.
