Ventech GI sheet exhaust air ceiling diffuser round share ventilation metal disc valve supply return air grille kitchen diffuser82

Company Advantages
1. Ventech is made by adopting international advanced technologies. This product has been exported to more than 50 countries
2. Professional after-sales service personnel of Yingde Ventech Air Conditioning Co.,Ltd will provide service at the first time according to customer requirements. It can be installed on the wall or the ceiling
3. It won't wrinkle easily. The formaldehyde-free anti-wrinkle finishing agent is used to ensure the flatness and dimensional stability after washing multiple times. This product is characterized by its impact resistance
4. The product is both practical and beautiful. Design from the perspective of ergonomics, using the latest fashion trend. It is widely used in long corridors, offices, buildings, etc

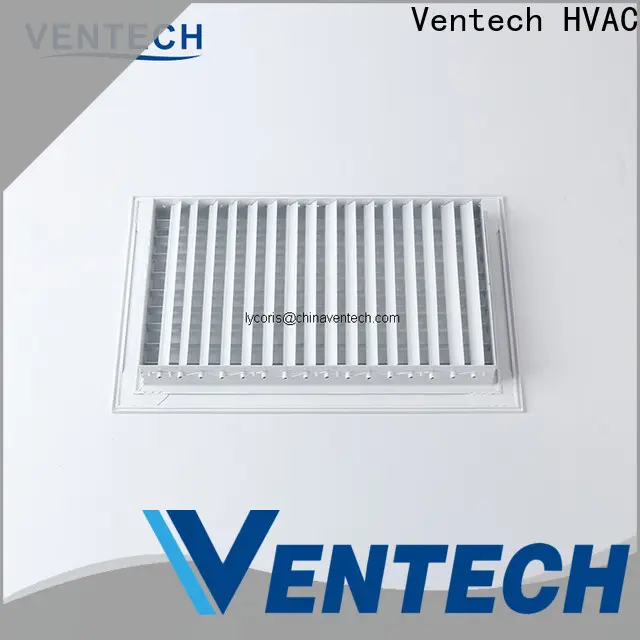

DOUBLE DEFLECTION GRILLE

t

VENTECH Air Grilles are widely used in HVAC ventilation system as the air supply or air return grilles. With adjustable blades, it's easier to adjust the air flow direction according to the practical needs. It has one layer grilles and double layers grille.

Double Deflection Air Grille is usually uased as air supply outlet and also can be used directly with fan coil unit. It's widely-used in central air conditioning terminal equipment. Double deflection air grille also can be used with multi-blade opposed air damper used for adjusting air volume.

Features:

• Sizes: Customized
• Made of aluminium
• For variable and constant volume flows
• Made up of two sets of air blades, vertical set in front and the horizontal set behind.
• The blade can be adjusted in any direction between o~180 degree. With the adjustment of different angle of the blade, you can get different reach distance and diffusion angle.
• Quick and easy to fix, concealed fixing

Details:

• Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
• Material thickness: 1.0mm
• Accessory: Oppose Blade Damper
• Installing: Mounting by screws or spring clips



Drawing & Data:





ACCESSORY: OPPOSE BLADE DAMPER









Company Features
1. While developing the scale of market, Ventech has been always expanding the range of exported . The factory implements a strict quality control system to guide the whole production process. This system has helped increase the whole productivity and regulate the operation, which eventually contributes to improving product quality.
2. We have a state-of-the-art manufacturing plant. It complies with the highest regulatory requirements and operates under strict quality control. This allows us to bring out high-quality products with the best results.
3. According to data from clients, our products have been widely used in different applications around the world. We have made more efforts in expanding the product ranges for more different application purposes. Our firm bears societal responsibilities. We have promoted and developed manufacturing processes that use less raw materials, which leads to sustainability.
