Ventech 4 way supply air diffuser company1

Company Advantages
1. Body frame structure of 4 way supply air diffuser is optimized by means of . This product is perfectly suitable for damp areas such as toilets and bathrooms
2. Yingde Ventech Air Conditioning Co.,Ltd has a complete processing equipment, advanced technology and a sound quality control system. It can effectively help circulate air in residential and commercial buildings
3. Conduct overall quality control to ensure that products meet all relevant quality standards. Adopting premium aluminum material, its frame is sturdy enough
4. The implementation of the quality management system ensures the product meets the international standards. This product meets the requirements of building regulations

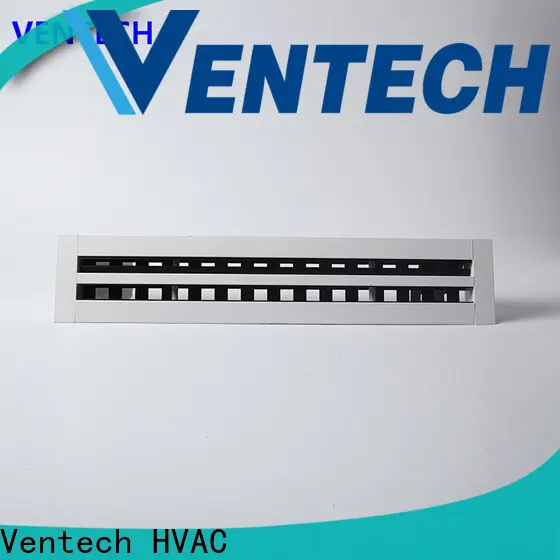

LINEAR SLOT DIFFUSER



VENTECH Linear Slot Diffusers are an attractive alternative to the ceiling or high sidewall supply diffusers. Slot diffusers can be installed individually in set lengths or in a continuous line. They can also be installed in any type of ceiling application.



The modules are available with a 20mm or 25mm Slot with the number of slots ranging from 1 to 6 slots and are further available as fixed or removable core. (Fixed Core - Model LSD-VA, Removable Core – LSD-VB.)



The air pattern control is adjustable from the diffuser face and is achieved by means of an adjustable pattern control with each slot, enabling a full 90º air pattern adjustment. The suggested volume control should be from the main duct run take-off, or from a butterfly damper fitted to the inlet of the cushion head box.

Features:

• ·Concealed screw fixing

  ·Finish: off white standard, other colors on demand

  ·Made from high grade extruded aluminum profiles & sheets.

  ·Accessories: Hit & miss damper, plenum box-top/side entry connection

Details:

• Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
• Material thickness: 1.2mm
• Accessory: Adaptor Optional





Drawing- with Adaptor











Company Features
1. We own a research team that keeps pace with the times. In the past years, they have accumulated rich industry knowledge and helped the company constantly launch numerous revolutionary technologies and materials.
2. Relentless pursuit of quality excellence is significant to Yingde Ventech Air Conditioning Co.,Ltd. Ask online!
