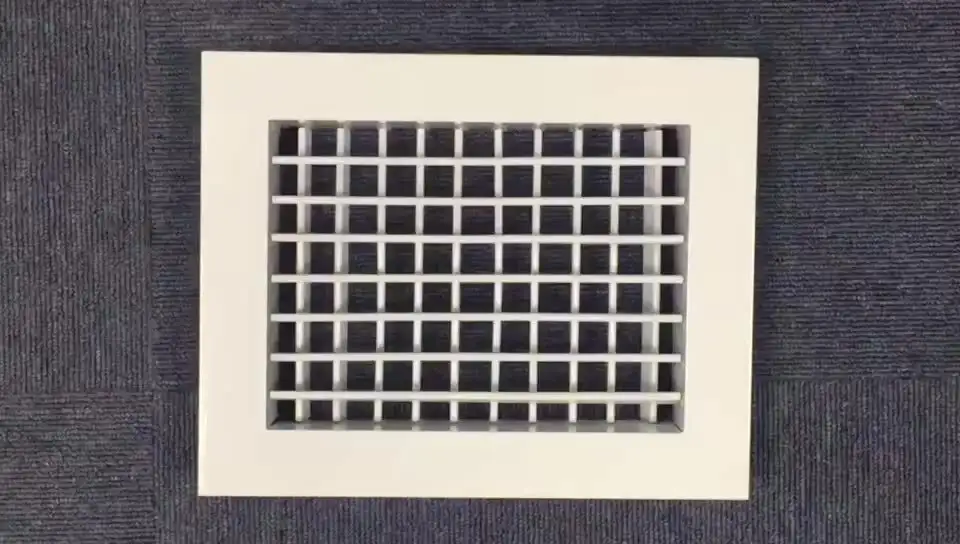

VENTECH Double deflection Aluminum air ventilation supply air conditioning grille

Type:

Air Conditioning,HVAC Systems

Lead_Time:

1 - 100(Pieces):8(days),>100(Pieces):Negotiable(days)

samples:

US$0.01/Pieces, 1 Piece (Min. Order)

shipping:

Sea freight

Customization:

Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:1 Year

After-sale Service:Online technical support

Project Solution Capability:graphic design

Application:Office Building

Design Style:Contemporary

Place of Origin:Guangdong, China

Brand Name:VENTECH

Model Number:DDG-VA

Product name:Air Diffuser

Material:Aluminum

Installation:ceiling/wall mounted

Function:supply air

Thickness:1.0mm

Size:Customized Size

Accessories:Oppose Blade Damper Optional

Color:RAL9016/RAL9010or/customized

Package:10PCS/CTN

Type:Air terminal units

Video Description

Hvac System Supply Grille Sizing Grill Aluminum Double Deflection Air Grilles For Ventilation

Product name	Double Deflection Grille
Material	Aluminum
Application	Air Conditioning Ventilation System
Shape	Rectangle
Color	RAL 9003/9010/9016
Accessories	Oppose Blade Damper Optional
Type	Wall Mounted
Product Keywords	supply air grille sizing,double deflection air grill,aluminum double deflection air grilles

Product description

Ventilation grille the type rectangular double deflection grille is as supply air or extract air variant for comfort zones and industrial zones. Ready-to-install component which consists of a border and individually adjustable, horizontal and vertical double layer blades.

The frame is made of high quality extruded aluminum profile with advantages of corrosion resistance and rigidity.Core of hinged time can be easily removable and interchangeable for better installation and maintenance.

Product Features

1. Directed supply air discharge for mixed flow ventilation.
2. Blades are individually adjustable to meet different local requirements.
3.For installation in walls or ceiling.
4. Concealed fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.
5. For horizontal installation into walls and bulkheads
6. DDG-VA is the standard one.DDG-VB & DDG-VD are both with removalbe blades which are thicker than blades of DDG-VA.
