Ventech Factory Price hvac supply air diffusers company

Company Advantages
1. Ventech is manufactured by complying with the principle of "minimize the impacts on the environment". Its production process is in strict line with international standards of building materials.
2. Popularity, good reputation, orientation are three evaluation index norms of Ventech HVAC image. This product is available in a broad range of models
3. To assure its quality, the product is manufactured under the supervision of our experienced QA team. This product can be easily fixed and removed
4. The product meets strict quality standards. Its shape can be customized to adapt to different ceilings

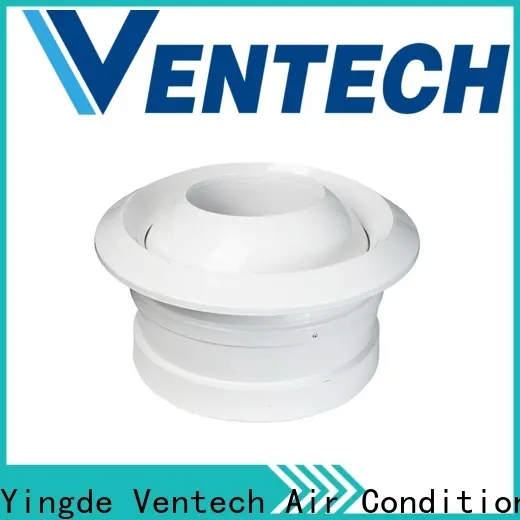

JET NOZZLE DIFFUSER

VENTECH jet diffusers, type JD, are especially developed for large and high areas such as concert halls, theaters, galleries, airports, shopping centers, industrial plants etc. Through their aerodynamic design they ensure a reduced noise level and even a long throw at high outlet velocities. The ball jet diffuser can be installed for supplying air either horizontally or vertically. The ball jet nozzle can be adjusted in any direction within 360 from the centerline without affecting the airflow resistance or the sound pressure level.

Features:

• Nominal sizes: 100, 125, 150, 200, 250, 315, 400, 450, 500 & 630mm
• Volume flow rate range: 15 to 400 l/s or 54 to 1440 m³/h
• Visible parts made of aluminium
• For variable and constant volume flows
• Low sound power levels due to aerodynamically optimised nozzle contours
• Quick and easy to fix, concealed fixing

Details:

• Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
• Material thickness: 1.2mm
• Accessory: slide damper





Company Features
1. Our factory implements the most rigorous quality management systems, such as the ISO 9001 international quality management system and production management system. Under these systems, we can reduce defective percentage and increase production efficiency.
2. We have hired a certified external energy auditor to help assess energy consumption. The audit report will point out the relevant measures that can improve our energy efficiency, reducing the manufacturing costs and the negative effects on the environment.
