Ventech linear supply air diffuser from China2

Company Advantages
1. The rigorous quality control of Ventech linear supply air diffuser is conducted throughout all production stages to guarantee the dimension and specification is within the tolerance limit in mechanical seals industry. Adopting premium aluminum material, its frame is sturdy enough
2. Yingde Ventech Air Conditioning Co.,Ltd uses solid cartons to pack linear supply air diffuser so as to make sure they are safe enough. It can be installed on the wall or the ceiling
3. It is UV resistant. Fabrics which are UV absorbing and has reflective properties are used in its manufacture to ensure protection from the sun. This product is capable of providing excellent air distribution





LINEAR SLOT DIFFUSER



VENTECH Linear Slot Diffusers are an attractive alternative to the ceiling or high sidewall supply diffusers. Slot diffusers can be installed individually in set lengths or in a continuous line. They can also be installed in any type of ceiling application.



The modules are available with a 20mm or 25mm Slot with the number of slots ranging from 1 to 6 slots and are further available as fixed or removable core. (Fixed Core - Model LSD-VA, Removable Core – LSD-VB.)



The air pattern control is adjustable from the diffuser face and is achieved by means of an adjustable pattern control with each slot, enabling a full 90º air pattern adjustment. The suggested volume control should be from the main duct run take-off, or from a butterfly damper fitted to the inlet of the cushion head box.

Features:

• ·Concealed screw fixing

  ·Finish: off white standard, other colors on demand

  ·Made from high grade extruded aluminum profiles & sheets.

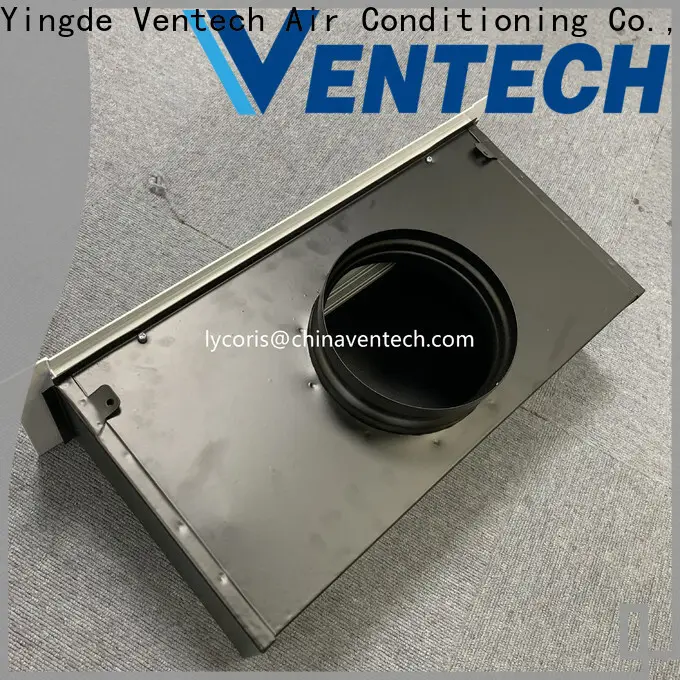

  ·Accessories: Hit & miss damper, plenum box-top/side entry connection

Details:

• Surface Finish: Powder coated color finish as per RAL color----standard color: RAL9016, 9010.
• Material thickness: 1.2mm
• Accessory: Adaptor Optional





Drawing- with Adaptor











Company Features
1. Yingde Ventech Air Conditioning Co.,Ltd has become the largest production base for linear supply air diffuser in Pearl River Delta.
2. The technology for hvac supply air diffusers Yingde Ventech Air Conditioning Co.,Ltd mastered is advanced in China and even has approached internationally advanced status.
3. Our company is striving for green manufacturing. We choose materials carefully to ensure minimum indoor air emissions and maximize customers' ability to return materials to the resource stream once they have served their intended purpose.
