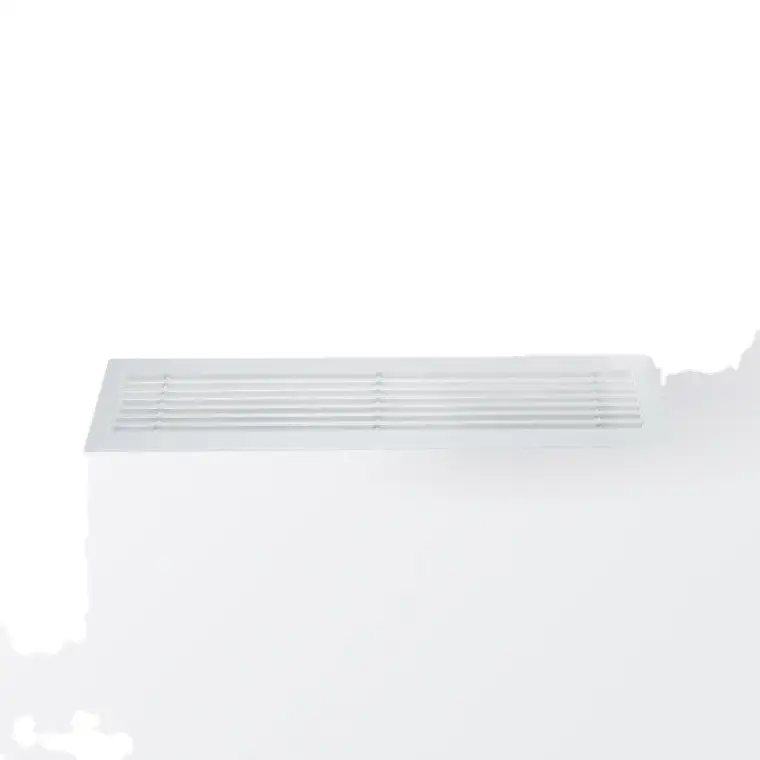

VENTECH ventilation aluminium single deflection return linear bar diffuser grille

Type:

HVAC Systems,Ventilation

Lead_Time:

1 - 600(Pieces):15(days),>600(Pieces):Negotiable(days)

shipping:

Sea freight

Customization:

Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:5 years

After-sale Service:Online technical support, Free spare parts, Other

Project Solution Capability:graphic design, total solution for projects, Others

Application:Apartment

Design Style:EUROPEAN

Place of Origin:Guangdong, China

Brand Name:VENTECH

Model Number:LG-VA

Material:Aluminum

Function:Return Air

Feature:Adjustable

Usage:Air Conditioning Terminal

Shape:Rectangle

Color:White

1. Description:

* The linear bar grille is make of high quality extruded aluminium profile.
* Three type of blades: 0°,15°,30°blades
* The linaer grille is an extremely versatile air diffsuer that can be used in the floor,sill,wall or ceiling

2. Features:
* Reduced installation time
* Reduced height between floors
* Easier installation (plug and play)
* Lower wiring costs
* Higher opoerational security
* Maximum flexibility of configuuration and technology

3. Colour :

* White: RAL 9010, RAL9016,RAL9003

* Anodized

* Other color available as client's need

4. Structure:
* Bar type ,blade deflection angles : 0°,15°,30

5. Product Drawing:

6. Standard size details:

Model	NECK SIZE(MM)	FACE SIZE(MM)	ACTUAL PRODUCE NECK SIZE(MM)
LG-VA	200X200	250x250	190x190
LG-VA	400X200	450x250	390x190
LG-VA	600X300	650x350	590x290
LG-VA	500X250	550x300	490x240

7. Product details:

This product has signs of being applied in more areas. This product has the advantage of corrosion resistance. Yingde Ventech Air Conditioning Co.,Ltd has always been adhering to the one-stop service with pragmatic and mutually beneficial. This product has the advantage of corrosion resistance.
