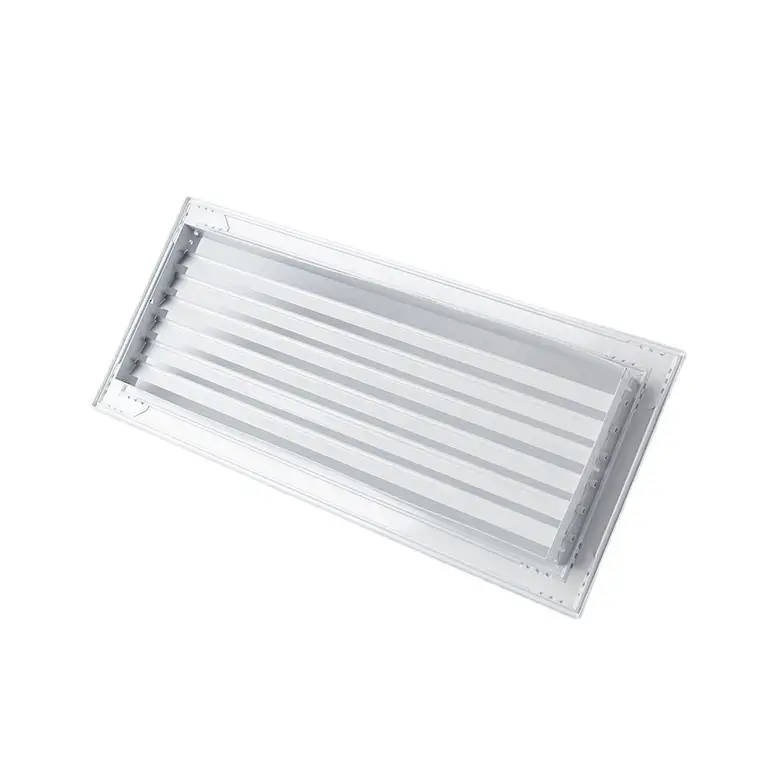

VENTECH ventilation aluminum air ceiling return and supply single deflection grille with obd

Type:

HVAC Systems,Ventilation

Lead_Time:

1 - 600(Pieces):15(days),>600(Pieces):Negotiable(days)

shipping:

Sea freight

Customization:

Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:5 years

After-sale Service:Online technical support, Free spare parts, Other

Project Solution Capability:graphic design, total solution for projects, Others

Application:Apartment

Design Style:EUROPEAN

Place of Origin:Guangdong, China

Brand Name:VENTECH

Model Number:SDG-VA

Material:Aluminum

Function:Return Air

Feature:Adjustable

Usage:Air Conditioning Terminal

Shape:Rectangle

Color:White

1. Description:

* Make of high quality extruded aluminum profile .All size available Supply air grille (HVAC part , air register ,double deflection supply air grille )

* The aluminum grille has two models :double deflection grille and single deflection grille
Generally for double layer products ,the long blades are in the face while short blades in the back
To reduce the flow resistance and noise ,blades can be streamlined design .

* The single deflection grille is commonly installed in hotel rooms for supply of conditioned air.It incorporates two seperate sets of adjustable blades.Users can easily control the air flow direction via adjusting the orientation of the blaeds .

* In order to secure the grille into place,we supply customers with easy mounting clips which would save installation time. These usually shaped blades are made of high quality plastics by using innovative production technologies

2. Colour :

* White: RAL 9010, RAL9016,RAL9003

* Anodized

* Other color available as client's need

3. Product Drawing:

4. Standard size details:

Model	NECK SIZE(MM)	FACE SIZE(MM)	ACTUAL PRODUCE NECK SIZE(MM)
SDG-VA	200X200	250x250	190x190
SDG-VA	400X200	450x250	390x190
SDG-VA	600X300	650x350	590x290
SDG-VA	500X250	550x300	490x240

6. Product details:

This product is unlikely to hold people's feet in an unnatural and impede natural foot movement. It will provide enough foot comfort and wearing support. This product can be installed in a horizontal or vertical position. Regardless of its color or thickness, it looks like a high-quality piece of garment. It will definitely add charm to those who wear it. This product can be installed in a horizontal or vertical position.
