Ventilation Aluminum Round Adjustable Ceiling Circular Swirl Jet Diffuser For Hvac In Airport Side

Type:

HVAC Systems,Ventilation

Lead_Time:

1 - 500(Pieces):15(days),>500(Pieces):Negotiable(days)

shipping:

Sea freight

Customization:

Graphic customization (Min. Order: 5000 Pieces),Customized packaging (Min. Order: 5000 Pieces),Customized logo (Min. Order: 5000 Pieces)

Inquiry

Write a Review

Overview

Quick Details

Warranty:1 Year

After-sale Service:Return and Replacement

Project Solution Capability:NONE

Application:Office Building, Air Conditioning Ventilation System

Design Style:Contemporary

Place of Origin:Guangdong, China

Brand Name:VENTECH

Model Number:SD-VC

Item name:Round swirl diffuser

Color:Customized Color

Airflow:150-1300CMH

Thickness:1.2mm

Material:Aluminum Alloy

Function:Air Outlet

Size:Standard Size

Shape:Round shape

Installation:Ceiling/Wall Mounted Installation

Hvac System Round Aluminum Air Diffuser Entilation Square Swirl Diffusers For Ventilation

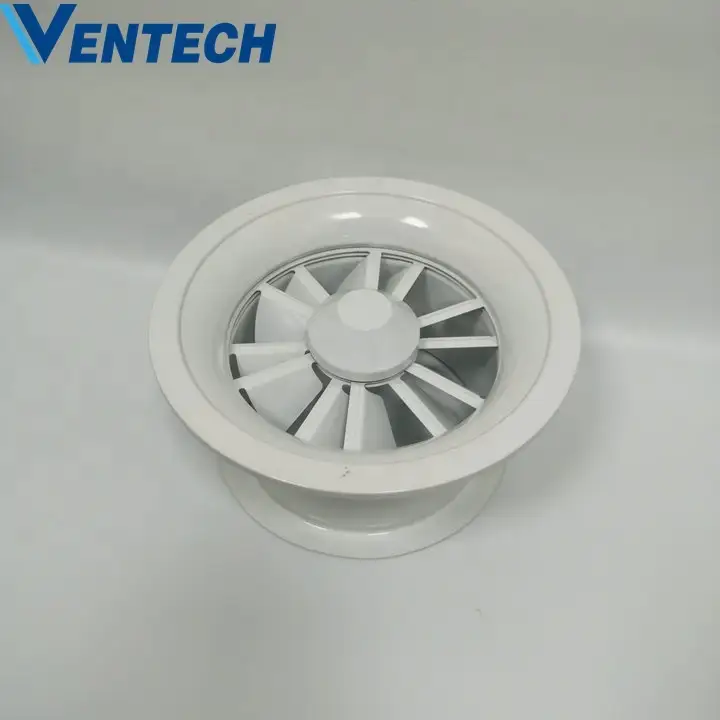

Product name	Round Swirl Diffuser
Material	Aluminum
Color	RAL9016/RAL9010/Anordized
Shape	Round
Function	Ventilaion
Free sample	Available
Product Keywords	round swirl diffuser,aluminum swirl air diffuser,entilation square swirl diffusers

Product description

Ceiling swirl diffusers are used as supply air diffusers for high rooms in comfort and industrial zones. For production halls, gymnasiums, theatres and conference rooms as well as for large internal spaces in airports, railway stations and shopping centers.

Ceiling swirl diffusers in air conditioning systems create a swirl to supply air to rooms. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. Ceiling swirl diffusers allow for large volume flow rates. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.

Ceiling swirl diffusers have adjustable air control blades. Different air patterns allow for cooling or heating mode, or for the adjustment to varying loads. Horizontal air discharge is Omni directional.

Product Features

1. For Supply air.
2. High induction, a rapid reduction of the temperature difference and airflow velocity.
3. Discharge direction can be adjusted manually or with an actuator.
4. Butterfly damper optional.
5. Actuator optional for adjusting the air discharge direction.
6. Ideal for high ceilings.

With our independent factory, Yingde Ventech Air Conditioning Co.,Ltd can totally take control of quality and technology. This product is perfectly suitable for damp areas such as toilets and bathrooms. Backed by Ventech HVAC and latest techniques, we are able to finish the bulk of orders of our esteemed customers on time. This product is perfectly suitable for damp areas such as toilets and bathrooms.
