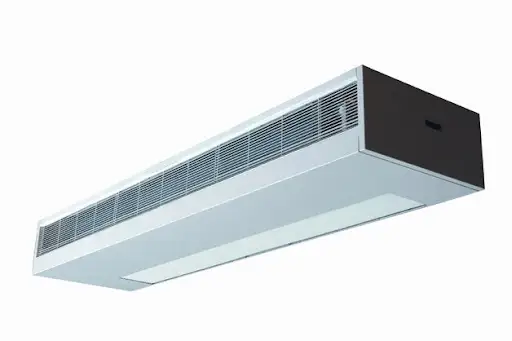

Horizontal Ceiling Exposed Fan Coil Unit for HVAC system Central air conditioners

Model No.:

Horizontal Ceiling Exposed Fan Coil Unit

MOQ:

1pcs

Payment:

T/T,L/C

Delivery Time:

30 days after receiving prepayment

Loading Port:

Shenzhen,China

Logo:

VENTECH/VCARE/OEM

Color:

White

Model:

Horizontal Ceiling Exposed Fan Coil Unit

Minimum:

1pcs

Origin:

China

Brand:

VENTECH/VCARE/OEM

Inquiry

Write a Review

Horizontal Ceiling Exposed Fan Coil Unit for HVAC system Central air conditioners

Model				FP200WM-3*	FP300WM-3*	FP400WM-3*	FP500WM-3*	FP600WM-3*
Air volume	H		m3/h	340	510	680	850	1020
	M			280	380	515	660	165
	L			180	260	340	430	530
Cooling capacity	Total	H	W	2020	3010	3830	4770	5960
	Total	M	W	1683	2742	3191	3938	4882
	Total	L	W	1561	2293	2637	3096	4186
Heating capacity	H		W	3030	4515	5745	7155	8940
	M			2187	3088	4790	5196	6284
	L			1456	1978	2957	3715	4218
Motor	Input	H	W	37	52	62	76	96
Noise level	H	Standard	dB(A)	≤37	≤39	≤ 41	≤43	≤45
Dimension	Length		mm	740	840	940	940	1040
	Width			500	500	500	500	500
	Height			230	26	230	230	230
Unit weight	Standard		kg	25	2e	28	28	30

Model				FP700WM-3*	FP800WM-3*	FP100WM-3*	FP1200WM-3*	FP1400WM-3*
Air volume	H		m3/h	1200	1360	1700	2040	2380
	M			910	1040	1280	1550	1800
	L			610	710	860	1050	1190
Cooling capacity	Total	H	W	6620	7580	9520	10800	12600
	Total	M	W	5916	6775	8301	9296	10623
	Total	L	W	5154	5900	7640	8634	8056
Heating capacity	H		W	9930	11370	14280	16200	18900
	M			7313	8342	11078	12997	16807
	L			5046	5705	7396	8645	13422
Motor	Input	H	W	113	134	152	189	228
Noise level	H	Standard	dB(A)	≤45	≤46	≤ 48	≤50	≤52
Dimension	Length		mm	1240	1440	1540	1640	1740
	Width			500	500	500	500	500
	Height			230	230	230	230	230
Unit weight	Standard		kg	40	44	46	48	50

*Design and test according to the GB/T 1923202993.We supply the non-standard product upon request.

*Standard cooling cap,was tested and carried out in environment of EAT 27℃，DB 19.5℃,EWT 7℃,LWT 12℃.

*Standard heating cap,was tested and carried out in evnironment of DB 21℃,EWT 60℃,water volume equals to cooling.

*Noise level is testing standard GB/T 19232-2003.

*In above table,H means the high velocity,M means the middle velcoity,L means the low velocity.

* Cooresponds to content in unit model and nameplate.

Horizontal Ceiling Exposed Fan Coil Unit for HVAC system Central air conditioners 2

ABOUT US

Ventech(Vcare) Whole-house Healthy & Comfortable Air conditioning system, is Committed to provide people with a healthy and comfortable home living environment.

Ventech(Vcare)’s talent technical engineers keep improving the efficiency of the system according to the needs of the market. And Based on a 40,000㎡ modern factory and more than 300 professional workers, Ventech provides high quality Whole-house Healthy & Comfortable Air conditioning system.

How to Get a Quick Quotation of Central AC product?
1. Project Drawing,building layout,equipment BOQ.
2. Project name:building name or building type,such as xxx office project,residential house project etc.
3. Expected shipping date of this project.
4. Project type: tender or self-owned.

Want to learn more about VENTECH(Vcare) Central air conditioner unit,please contact us by email directly.
